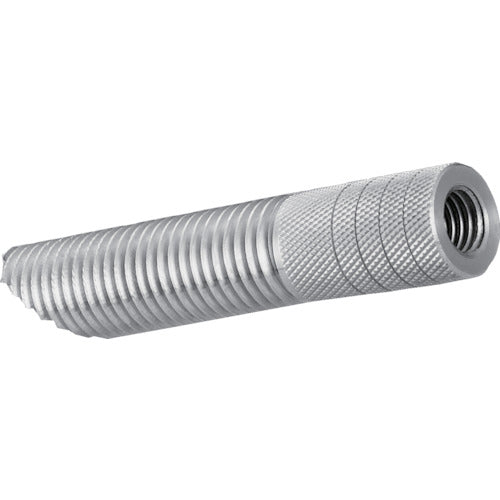

AY Fasteners Internal Thread Chemical Anchor ME-M20N Trivalent ME-M20N 1 Piece

Catalog number: ME-M20N Features: ● An anchor that is installed by combining an internally threaded insert and a chemical anchor (resin adhesive). ● Like an internally threaded anchor, the attachment can be fastened with a commercially available bolt. ● The length of the bolt can be freely selected according to the thickness of the attachment. ● Various bolt shapes, such as eye bolts, can be selected according to the construction conditions. ● There is no need to cut the bolt even when removing or replacing it after fastening. Applications: ● Installation of vibration equipment, large machinery, fenders, earthquake-resistant equipment equipment, scaffolding installation, general tunnel construction. For civil engineering work such as wall support and installation of fall prevention nets on highways. Specifications: ●Outer diameter (mm): 30 ●Total length (mm): 170 ●Long-term allowable tensile load (kN): 26.6 ●Short-term allowable tensile load (kN): 53.9 ●Internal thread diameter: M20 ●Internal thread length (mm): 30 ●Drill diameter (mm): 35 ●Drilling length (mm): 170 ●Required resin amount (cm3): 89 Material/Finish: ●Body: Steel ●Surface treatment: Trivalent chromate treatment
