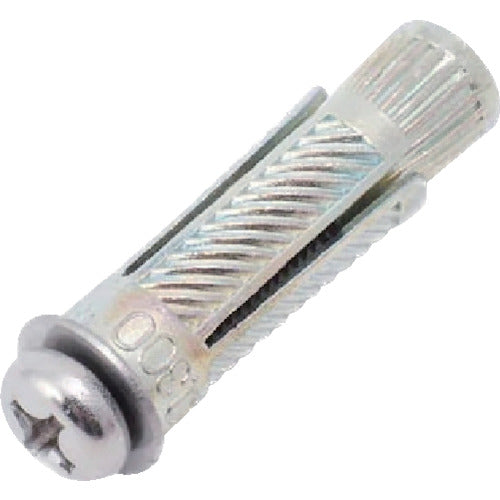

AY Fastener AY plug bolt AY-530AS (P-1 pan head screw) trivalent AY-530AS 100 pieces

Catalogue number: AY-530AS Features: ●Zinc die-cast sleeves have zero self-corrosion. ●Tapered nut ensures that the sleeve is securely fixed. Applications: ●Used for attaching all kinds of equipment and fixtures to concrete, blocks, bricks, tiles, and marble. Specifications: ●Screw size: M5 ●Drill diameter (mm): 8.5 ●Maximum tensile load (kN): 5.6 ●Outer diameter (mm): 8.0 ●Embedded depth (mm): 20 ●Pilot hole diameter (mm): 8.5 ●Bolt diameter x bolt length (mm): M5 x 30 ●Bolt dimensions (mm): 30 ●Sleeve length (mm): 20 Materials/Finish: ●Screws and bolts: Steel ●Tapered nut and sleeve: Zinc die-cast ●Surface treatment: Trivalent chromate treatment
