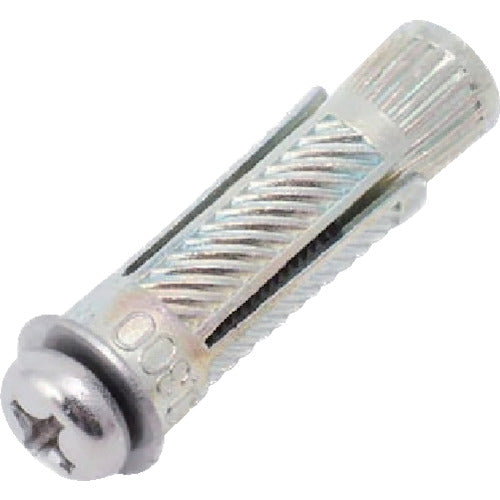

AY Fastener AY Plug Bolt SAY-640AS (Pan Screw) W Attached Stainless Steel SAY-640AS 50 Pieces

Catalogue number: SAY-640AS Features: ●Zinc die-cast sleeves have zero self-corrosion. ●Tapered nut ensures that the sleeve is securely fixed. Applications: ●Used for attaching all kinds of equipment and fixtures to concrete, blocks, bricks, tiles, and marble. Specifications: ●Screw size: M6 ●Drill diameter (mm): 11 ●Maximum tensile load (kN): 5.6 ●Outer diameter (mm): 10.5 ●Embedded depth (mm): 28 ●Pilot hole diameter (mm): 11.0 ●Bolt diameter x bolt length (mm): M6 x 40 ●Bolt dimensions (mm): 40 ●Sleeve length (mm): 28 Material/Finish: ●Screws and bolts: Stainless steel ●Tapered nut and sleeve: Zinc die-cast
