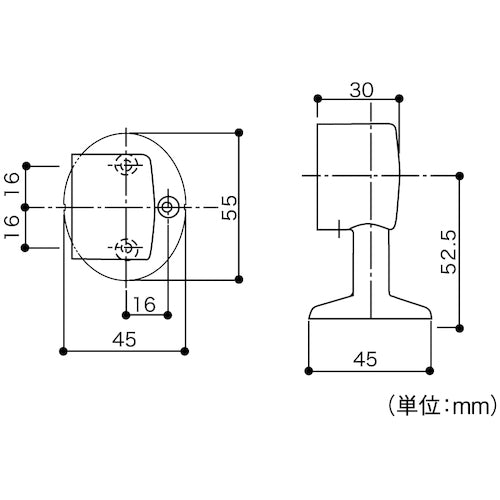

Catalogue number: EL-27 Features: ●Basic type of end bracket. ●Can be installed either vertically or horizontally. Specifications: ●Color: Brown ●Total length (mm): 55 ●Round seat diameter (mm): 55 x 45 ●Compatible pipe diameter (mm): 35 ●Summary: Height x thickness (mm): 45 x 72 ●Part for handrail bar thickness 35 mm Material/Finish: ●Body: Zinc alloy Set contents/Accessories: ●+ Flat head tapping screw 3.5 x 40 mm x 3 pieces ●+ Round head tapping screw 3.5 x 20 mm x 1 piece Caution: ●Do not use for any purpose other than attaching handrails ●Not suitable for use in bathrooms or outdoors ●Check the screws regularly to make sure they are not loose ●Cannot be installed on earthen walls, unit baths, or stonework
