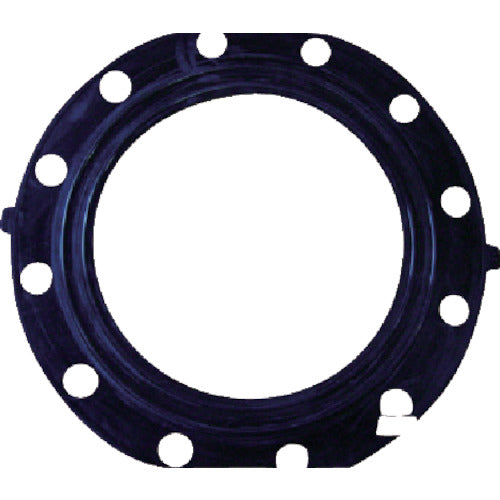

Eslon Gasket EPDM JIS10K 200A PE2HC 1 sheet

Catalog number: PE2HC Features: ● Rubber (EPDM) packing with excellent corrosion resistance. ● Can be used safely under high water pressure without being corroded by acidic or alkaline chemicals or seawater. ● Double round protruding ribs provide high sealing performance. Applications: ● Chemical plant chemical piping, semiconductor plant wastewater piping, fishery plant seawater piping, food plant wastewater treatment lines, etc. Specifications: ●Nominal diameter A: 200 ●Nominal diameter B: 8 ●Inner diameter (mm): 204 ●Outer diameter (mm): 328 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 290 ●Number of bolt holes (pcs): 12 ●Bolt hole diameter (mm): 23 ●Recommended tightening torque (N・m): 55 ●Operating temperature range: 0 to 100℃ ●Passed Food Sanitation Law leaching test ●Passed JIS K 6353 water supply rubber leaching test ●For full seat ●JIS10K specifications ●Maximum allowable pressure: 1.0MPa (20℃) ●Maximum allowable temperature: 100℃ Material/Finish: ●Ethylene propylene rubber (EPDM)
