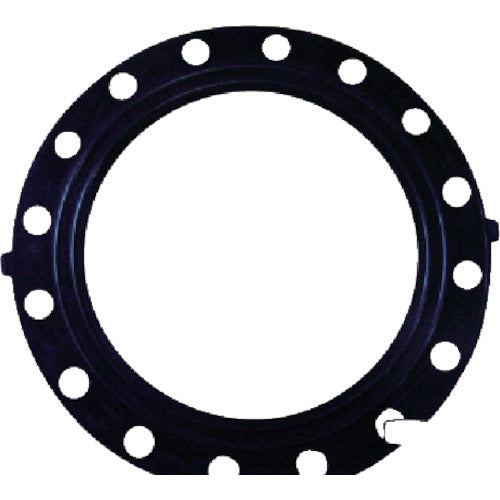

Eslon Gasket EPDM JIS10K 250A PE2FC 1 sheet

Catalogue number: PE2FC Features: ●A packing made of rubber (EPDM) with excellent corrosion resistance. ●Double round protruding ribs provide reliable water stopping performance. ●Excellent resistance to chlorine water and chemicals. ●Not affected by residual chlorine contained in tap water. ●Provides high sealing performance with low tightening torque. ●Maximum allowable temperature is 100°C. Applications: ●Suitable for various piping such as chemical plant chemical piping, semiconductor plant pure water piping, fishery plant seawater piping, and food plant wastewater treatment lines. ●Other materials: PTFE, IIR-X, PTFE (Tri-Guard) are available. Specifications: ●Nominal diameter A: 250 ●Nominal diameter B: 10 ●Inner diameter (mm): 254 ●Outer diameter (mm): 398 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 355 ●Number of bolt holes (pcs): 12 ●Bolt hole diameter (mm): 25 ●Thickness (t): 3 ●Maximum operating temperature (℃): 100 ●Center circle diameter (C) 355mm ●JIS10K specification ●Recommended tightening torque (N・m): 65 ●Material: EPDM ●Size: 250A ●Nominal diameter: 10B ●Number of holes (pcs): 12 ●JIS10K specification ●Maximum allowable pressure: 1.0MPa (at 20℃) ●Thickness 3mm ●Below 100℃ ●For full seat Material/Finish: ●Ethylene propylene rubber (EPDM)
