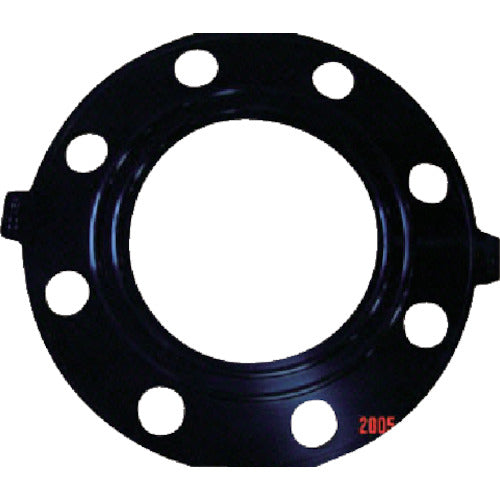

Eslon Gasket EPDM JIS5K 65A PE655C 1 sheet

Catalog number: PE655C Features: ●A rubber (EPDM) packing with excellent corrosion resistance. ●Can be used safely under high water pressure without being corroded by acidic or alkaline chemicals or seawater. ●Double round protruding ribs provide high sealing performance. Applications: ●Chemical plant chemical piping, semiconductor plant wastewater piping, fishery plant seawater piping, food plant wastewater treatment lines, etc. Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Inner diameter (mm): 73 ●Outer diameter (mm): 153 ●Thickness (mm): 3 ●Operating pressure (K): 5 ●Bolt hole center diameter (mm): 130 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Recommended tightening torque (N・m): 30 ●Operating temperature range: 0 to 100℃ ●Passed Food Sanitation Law leaching test ●Passed JIS K 6353 water supply rubber leaching test ●For full seat ●JIS5K specifications ●Maximum allowable pressure: 1.0MPa (20℃) ●Maximum allowable temperature: 100℃ Material/Finish: ●Ethylene propylene rubber (EPDM)
