Eslon HT Fitting C (Cap) 30 THC30 1 pc

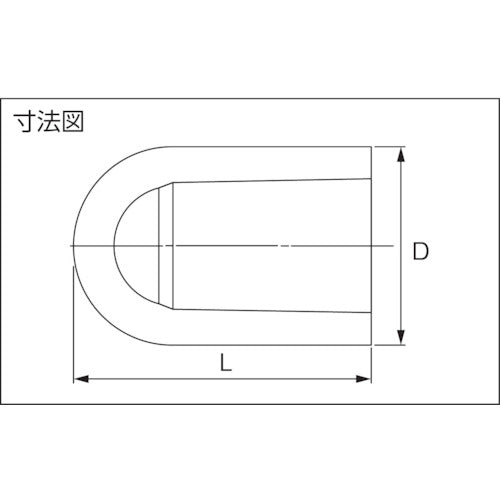

Catalog number: THC30 Features: ●HT resin fitting with excellent heat resistance. ●For use with Eslon HT pipes only. ●Compared to conventional polyvinyl chloride pipes, it can be used stably in high temperature ranges. ●For use with Eslon HT pipes only. Applications: ●For hot water supply, heating and cooling piping, and hot spring piping. ●Used for hot water supply, heating and cooling piping, and hot spring piping. Specifications: ●PVC pipe nominal diameter: 30 ●Dimensions (mm) D: 46 ●Dimensions (mm) D1: 46 ●Dimensions (mm) L: 63.5 ●Color: Reddish brown ●Material: Heat-resistant rigid polyvinyl chloride ●Maximum operating temperature (℃): 90 ●There are tolerances for each dimension ●Operating temperature range: 5 to 90℃ ●Maximum operating pressure: 0.2MPa ●JIS K6777 standard product Material/Finish: ●Heat-resistant rigid polyvinyl chloride Caution: ●Please be especially careful when ventilating. ●When installing, be sure to refer to the reference materials (installation, performance, and safety precautions) in the Eslon Pipe Catalog "General Catalog." Failure to do so may result in serious accidents such as water leakage.
