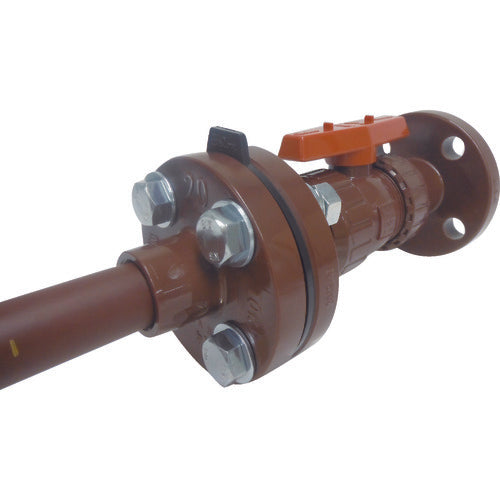

Eslon TS flange (HT) 10K specification 15A TSFHT15 1 piece

Catalog number: TSFHT15 Features: ● Heat-resistant flange with excellent corrosion resistance. ● Can be used safely without being corroded by acidic or alkaline chemicals or seawater. Applications: ● For piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, wastewater treatment lines in food plants, etc. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Inner diameter (mm): 17 ●Outer diameter (mm): 95 ●Thickness (mm): 14 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 70 ●L (mm): 35 ●Number of holes (pcs): 4 ●Material: Heat-resistant rigid polyvinyl chloride pipe (C-PVC) HT ●Nominal diameter: 1/2B ●PVC pipe nominal diameter: 16 ●Size: 15A ●Applicable bolt neck length (mm): 50 ●Applicable bolt nominal (mm): M12 ●Maximum operating temperature: 90℃ ●JIS10K specification (JIS B2220 standard) Material/Finish: ●Heat-resistant rigid polyvinyl chloride pipe (C-PVC) HT Caution: ●When using adhesives, please be careful to ventilate the area. ●Please use standard installation methods. ●Pay attention to the tightening torque. ●Be careful not to tighten unevenly.
