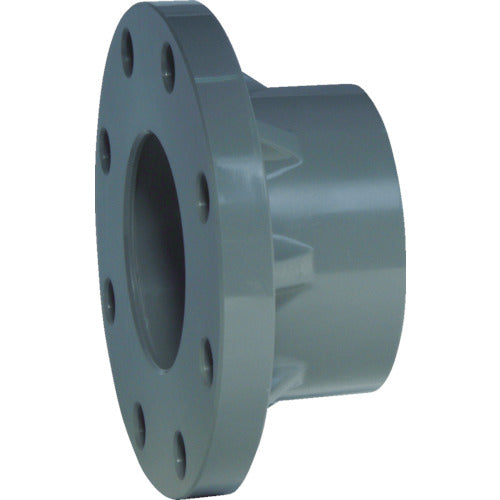

Eslon TS flange JIS10K PVC 65A TSF65 1 pc

Catalog number: TSF65 Features: ● PVC flange with excellent corrosion resistance. ● Can be used safely without being corroded by acidic or alkaline chemicals or seawater. Applications: ● For piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, wastewater treatment lines in food plants, etc. Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Inner diameter (mm): 67 ●Outer diameter (mm): 175 ●Thickness (mm): 22 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 140 ●L (mm): 70 ●Number of holes (pcs): 4 ●Size: 65A ●Nominal diameter: 2 1/2B ●Material: Rigid polyvinyl chloride (PVC) ●PVC pipe nominal diameter: 65 ●Applicable bolt neck length (mm): 75 ●Applicable bolt nominal (mm): M16 ●L (mm): 70 ●Maximum allowable pressure: 1.0MPa (20℃) ●JIS 10K specification ●Maximum operating temperature: 60℃ ●Conforms to JIS B2220 Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●When using adhesives, please be careful to ventilate the area. ●Please follow the standard installation method. ●Pay attention to the tightening torque. ●Take care not to tighten unevenly.
