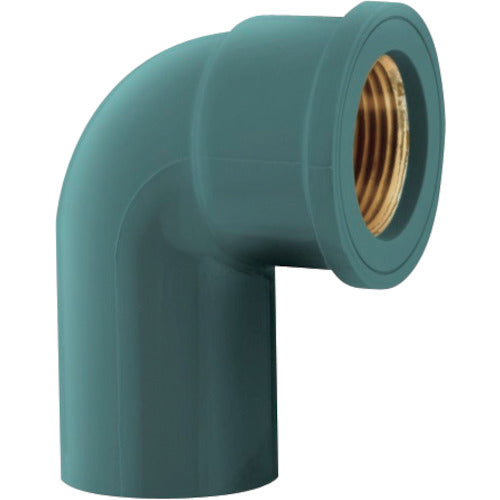

Eslon TS fitting, insert faucet elbow 20, Rp3/4, IWL20M, 1 piece

Catalog number: IWL20M Features: ● Made from rigid polyvinyl chloride resin, it is harmless to the human body and does not color or smell the water. Applications: ● For VP pipes (rigid PVC pipes) only. Specifications: ● PVC pipe nominal diameter: 20 ● Dimensions (mm) D: 33 ● Dimensions (mm) H: 51 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 5 to 40 ● Thread: Rp3/4 ● Operating temperature range: 5 to 40℃ ● Maximum operating pressure: 1.0MPa ● JIS K6743 standard Material/Finish: ● Rigid polyvinyl chloride (PVC)
