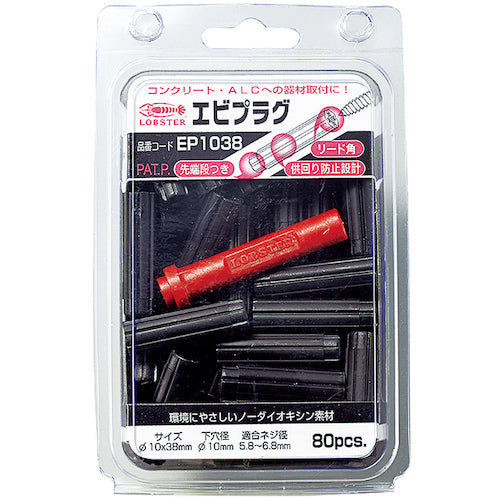

EBI EBI PLUG 10-38 BLACK (80 PIECES) EP1038 1 PK

Catalogue number: EP1038 Features: ● Stepped tip makes it easy to insert into pilot holes. ● Color-coded by nominal diameter for easy identification. ● The lead angle at the center of the head guides the screw straight. ● Unique anti-rotation design firmly secures the attached equipment. Applications: ● For concrete and ALC. ● Color-coded by nominal diameter for easy identification. ● The lead angle at the center of the head guides the screw straight. ● Unique anti-rotation design firmly secures the attached equipment. ●An environmentally friendly resin anchor plug made of dioxin-free material. Specifications: ●Nominal diameter (mm): 10 ●Length (mm): 38 ●Drilling depth (mm): 48-53 ●Maximum tensile load (kN): 8.8 ●Maximum tensile load (kN) concrete: 8.8 ●Maximum tensile load (kN) ALC: 1.5 ●Pilot hole diameter (mm): 10 ●Pilot hole diameter (mm) concrete: 10 ●Pilot hole diameter (mm) ALC: 9.5 ●Compatible screws (mm): 5.8-6.8 ●Outer diameter (mm): 10 ●Color: Black ●Total length (mm): 38 ●Color: Black ●Compatible screws: Wood screws, tapping screws ●Pack ●Quantity (pieces): 80 Material/Finish: ●Polypropylene (PP) Caution: ●The maximum tensile load is the value when the concrete strength is Fc23.5N/m［［Ｍ２］］. ●Avoid using on ceilings. ●The maximum pull-out load is greatly affected by the material and condition of the base material. Please use a sufficient safety factor taking into consideration the construction conditions. ●Screw length = plug length + thickness of object to be attached ●Before starting work, be sure to read the instruction manual carefully and fully understand it before using the product.
