EBI EBI PLUG 5-25 Orange (250 pieces) EP525 1 PK

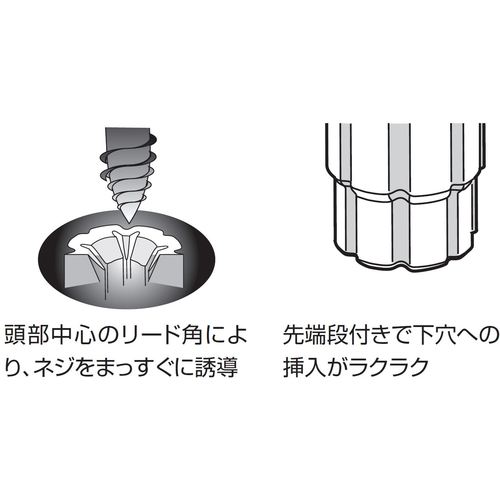

Catalogue number: EP525 Features: ● Stepped tip makes it easy to insert into pilot holes. ● Color-coded by nominal diameter for easy identification. ● The lead angle at the center of the head guides the screw straight. ● The unique anti-rotation design firmly secures the attached equipment. Applications: ● For concrete and ALC. ● Color-coded by nominal diameter for easy identification. ● The lead angle at the center of the head guides the screw straight. ● The unique anti-rotation design firmly secures the attached equipment. ●An anchor plug made of environmentally friendly dioxin-free resin material. Specifications: ●Nominal diameter (mm): 5 ●Length (mm): 25 ●Drilling depth (mm): 35-40 ●Maximum tensile load (kN): 2.7 ●Maximum tensile load (kN) concrete: 2.7 ●Maximum tensile load (kN) ALC: 0.5 ●Pilot hole diameter (mm): 5 ●Pilot hole diameter (mm) concrete: 5 ●Pilot hole diameter (mm) ALC: 4.5 ●Compatible screws (mm): 2.4-3.1 ●Outer diameter (mm): 5 ●Color: Orange ●Total length (mm): 25 ●Color: Orange ●Compatible screws: Wood screws, tapping screws ●Packed Material/Finish: ●Polypropylene (PP) Caution: ●The maximum tensile load is the value when the concrete strength is Fc23.5N/m［［Ｍ２］］. ●Do not use on ceilings. ●The maximum pull-out load is greatly affected by the material and condition of the base material. Please adopt a sufficient safety factor taking into account the construction conditions. ●Screw length = plug length + thickness of object to be attached●Before starting work, be sure to read the instruction manual carefully and use the product correctly only after fully understanding it.
