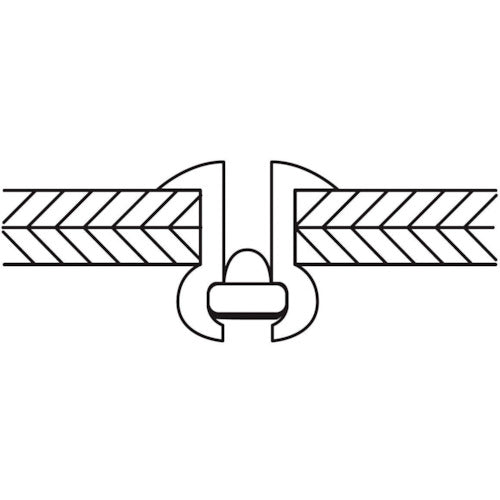

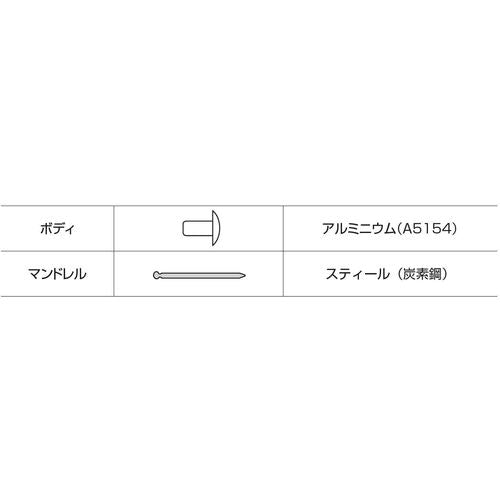

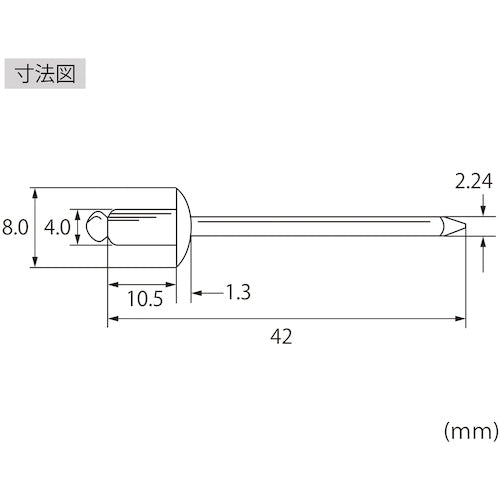

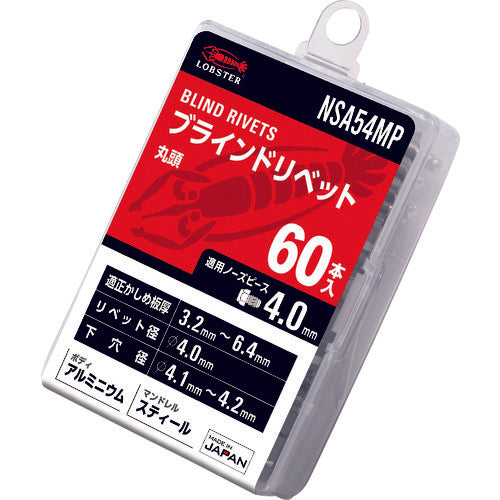

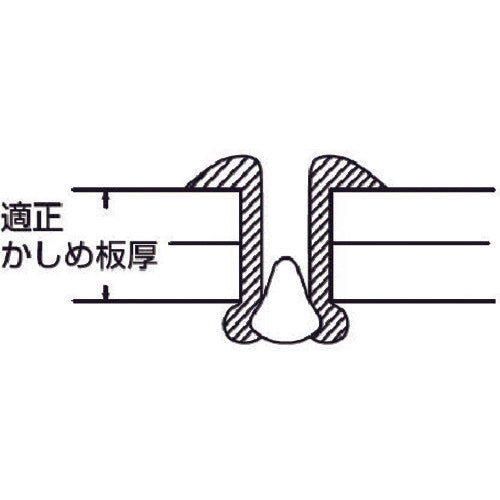

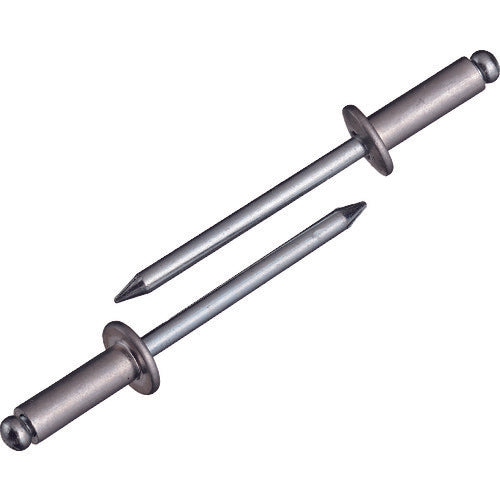

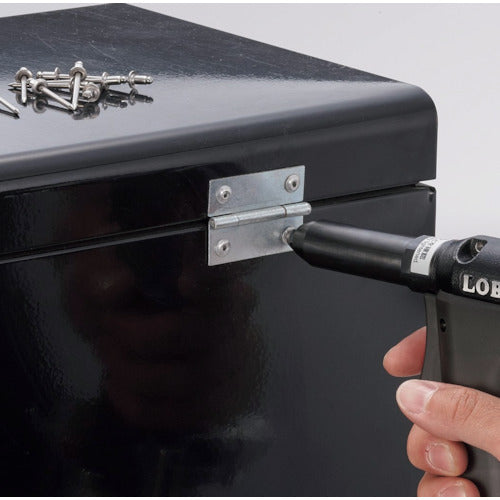

Catalog number: NSA54MP Features: ● Small size that can be used for necessary work without waste. ● Multiple base materials can be fastened from one side with one action. Applications: ● Blind rivet with the most popular combination of mandrel and body materials. ● Small size that can be used for necessary work without waste. ● Multiple base materials can be fastened from one side with one action. ● Compared to welding, it has the advantage of reducing labor and improving productivity. Specifications: ● Crimping plate thickness (mm): 3.2-6.4 ● Rivet length (mm): 10.5 ● Flange diameter (mm): 8.0 ● Rivet diameter (mm): 4.0 ● Pilot hole diameter (mm): 4.1-4.2 ● Shear strength (N): 1550 ● Tensile strength (N): 2200 ● Eco-pack included ● RoHS compliant ● Pack quantity (pieces): 60 ● Body material: Aluminum (A5154) ● Mandrel material: Steel (carbon steel) Material/Finish: ● Body: Aluminum (A5154) ● Mandrel: Steel (carbon steel) Caution: ● For the appropriate crimping plate thickness and pilot hole diameter, please observe our specified dimensions and take into consideration the safety factor when installing. ● Be sure to read the instruction manual of the riveter you will be using carefully before working. ● Be sure to read the instruction manual carefully before working and use it correctly after fully understanding it. ● Dimensions and weight are nominal values, so there may be some fluctuation in the values.
