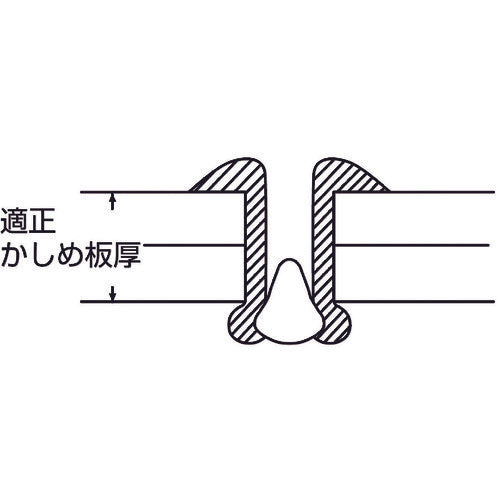

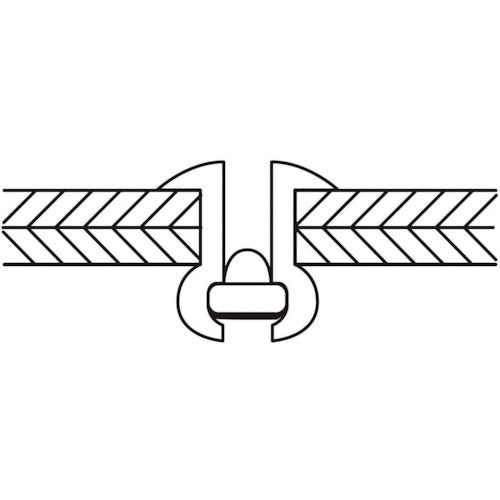

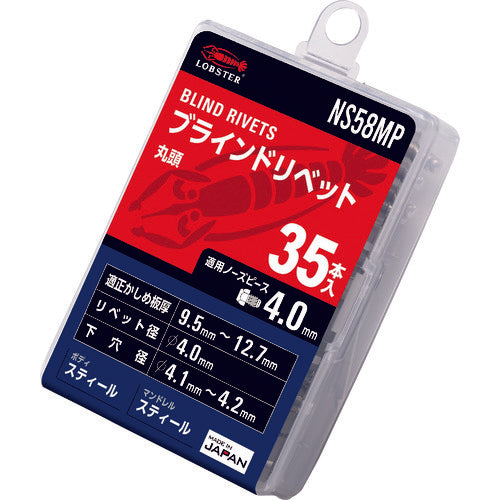

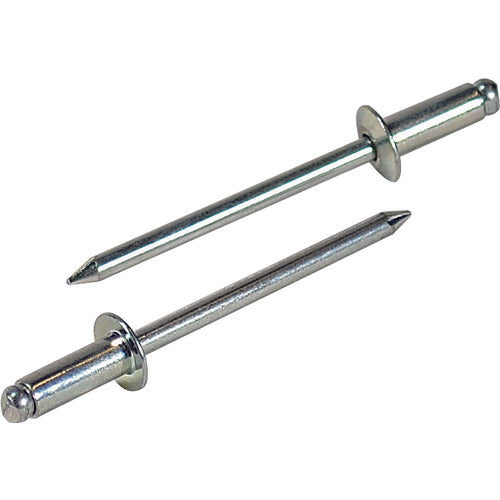

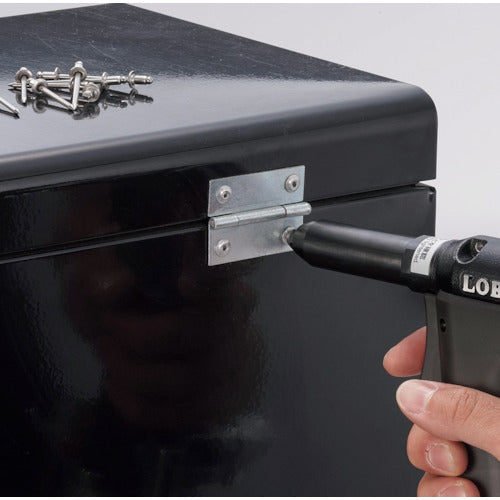

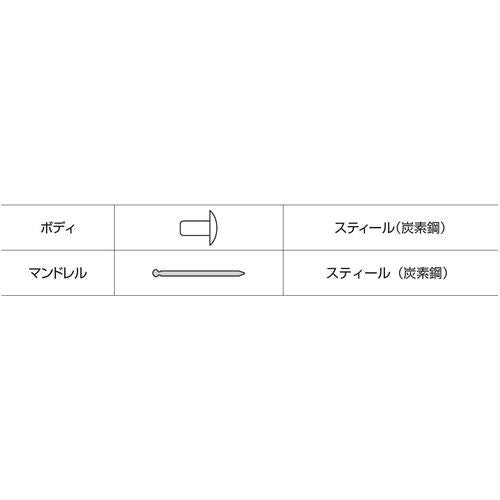

Catalog number: NS58MP Features: ●Multiple base materials can be fastened from one side with one action. ●Compared to welding, it has the advantage of reducing labor and improving productivity. ●A small size that can be used efficiently for the necessary work. Applications: ●For manufacturing transportation equipment (trucks, buses, passenger cars, railway cars, ships). ●For assembling electricity (OA equipment, home appliances, communication equipment, distribution boards). ●For installing housing (sashes, balconies, gates, handrails, siding). ●For assembling other items (stepladders, ducts, medical equipment, musical instruments, air conditioning equipment, elevators, signs, vending machines). Specifications: ● Crimping plate thickness (mm): 9.5-12.7 ● Rivet length (mm): 17.2 ● Flange diameter (mm): 8.0 ● Rivet diameter (mm): 4.0 ● Pilot hole diameter (mm): 4.1-4.2 ● Shear strength (N): 2000 ● Tensile strength (N): 2700 ● Eco-pack included ● RoHS compliant ● Pack quantity (pieces): 35 Material/Finish: ● Body material: Steel (carbon steel) ● Mandrel material: Steel (carbon steel) Caution: ● For the appropriate crimping plate thickness and pilot hole diameter, please observe our specified dimensions and take into consideration the safety factor when installing. ● Please be sure to read the instruction manual for the riveter you will be using carefully before starting work. ● Dimensions and weight are nominal values, so there may be some variation in the values.
