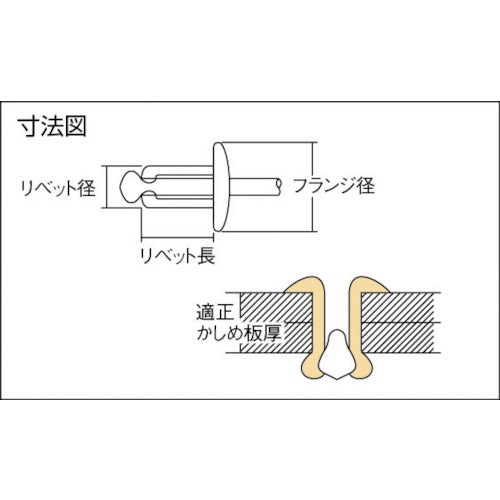

Catalog number: NST88 Features: ●Multiple base materials can be fastened from one side with one action, which contributes to labor saving and productivity improvement. ●Both the mandrel and the body are made of stainless steel, making it ideal for places where strength is required. Applications: ●Kitchen equipment, commercial refrigerators, etc. Specifications: ●Crimped plate thickness (mm): 9.5-12.7 ●Rivet length (mm): 18.9 ●Flange diameter (mm): 12.8 ●Rivet diameter (mm): 6.4 ●Pilot hole diameter (mm): 6.6-6.7 ●Shear strength (N): 8500 ●Tensile strength (N): 10500 ●Boxed ●RoHS directive compliant ●Quantity (pieces): 500 Material/Finish: ●Rivet body (flange): Stainless steel (SUS305) ●Mandrel (shaft): Stainless steel (equivalent to SUS304) Caution: ●Please observe our specified dimensions for the appropriate crimped plate thickness and pilot hole diameter and take into consideration the safety factor when installing. ●Please read the instruction manual for the riveter you are going to use carefully before starting work. ●The dimensions and weight are nominal values and may vary slightly.
