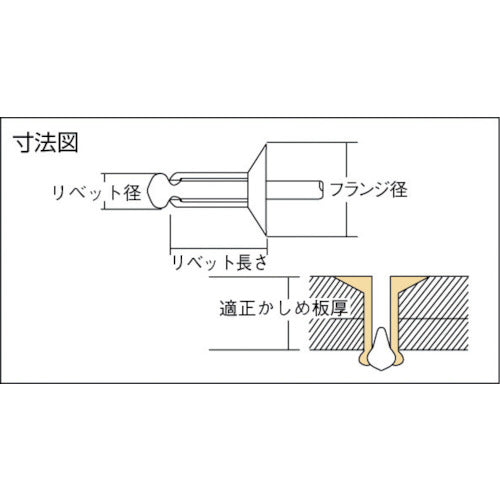

Catalog number: NSA42KEB Features: ● Useful for keeping the surface flat. ● Flange countersunk head ● Multiple base materials can be fastened from one side with one action. Compared to welding, it has the advantage of reducing labor and improving productivity. ● A small, convenient, small-sized eco box has been born for the jobs you need. Applications: ● Fastening metal to metal, fastening plastic to plastic, and fastening dissimilar base materials (metal to plastic, etc.). Specifications: ● Crimping plate thickness (mm): 1.6-3.2 ● Rivet length (mm): 6.5 ● Flange diameter (mm): 6.4 ● Rivet diameter (mm): 3.2 ● Pilot hole diameter (mm): 3.3-3.4 ● Shear strength (N): 960 ● Tensile strength (N): 1360 ● Box quantity (pieces): 300 ● Eco box included ● RoHS compliant ● Quantity (pieces): 300 Material/Finish: ● Rivet body (flange): Aluminum (A5154) ● Mandrel (shaft): Steel (carbon steel) Caution: ● Please observe the dimensions specified by our company for the appropriate crimping plate thickness and pilot hole diameter, and take into consideration the safety factor when installing. ● Please be sure to read the instruction manual of the riveter you will be using carefully before starting work. ● Dimensions and weight are nominal values, so there may be some variation in the values.
