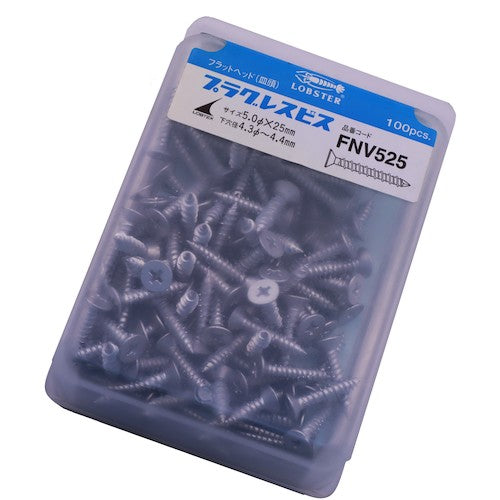

Catalog number: FNV525 Features: ●Ideal for attaching equipment to concrete, blocks, mortar, ALC materials, and wood. ●No need for insert parts such as plugs, which contributes to cost reduction, labor saving, and speed. Applications: ●For attaching equipment to concrete, blocks, mortar, ALC materials, and wood. Specifications: ●Nominal diameter d (mm): 5 ●Pre-drilled hole diameter (mm): 4.3-4.4 ●Embedding depth (mm): 22 ●Maximum tensile load (kN): 2.80 ●Drilling depth (mm): 35-t ●Length (mm): 25 ●Outer diameter (mm): 5 ●Maximum thickness of attachment (mm): 2.8 ●Number of pieces per pack (pieces): 100 Material/Finish: ●Steel ●Surface treatment: Disgo treatment Note: ●The maximum tensile load is the value when the concrete strength is Fc 34.3 N/mm [square]. ●The drilling depth is the value of length + 10 mm + t (thickness of attachment).
