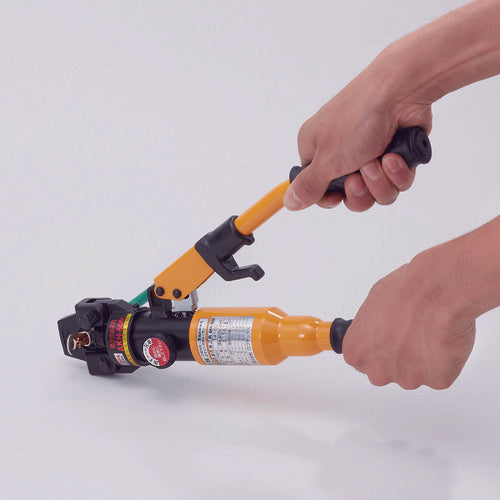

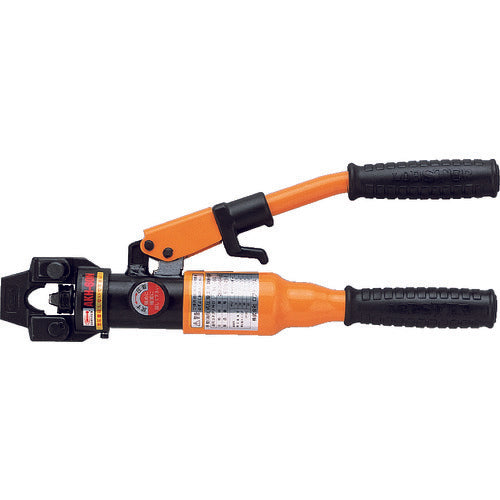

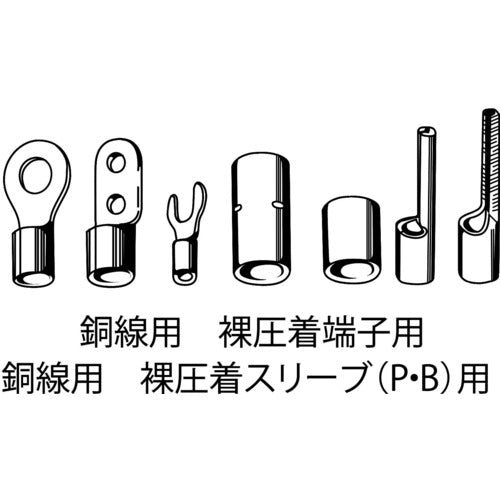

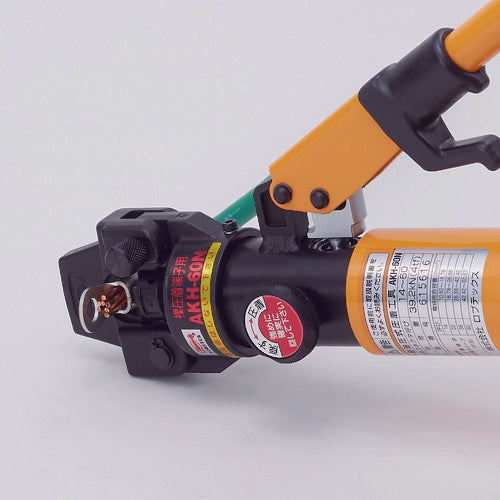

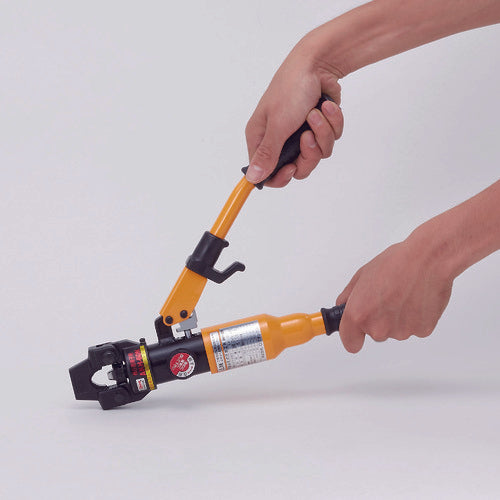

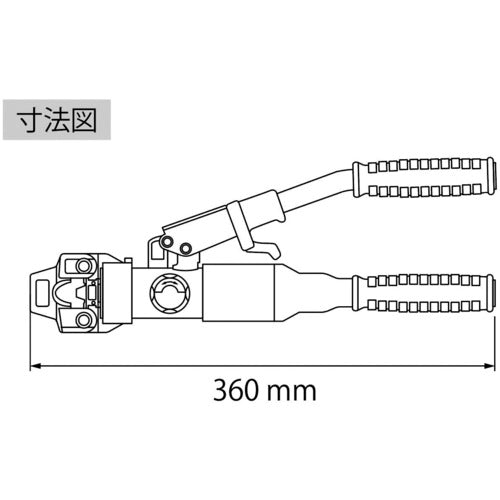

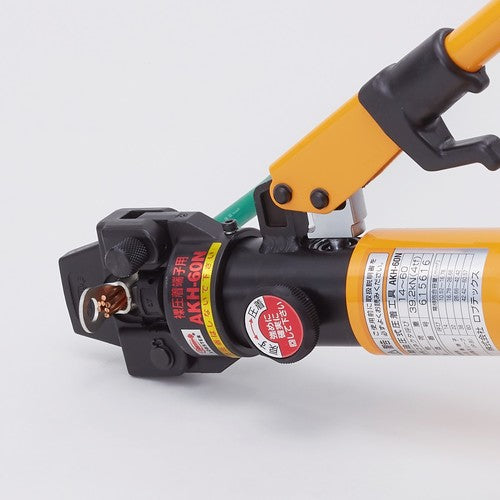

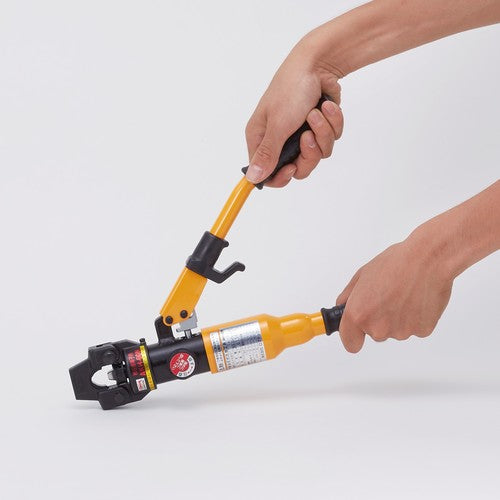

Catalogue number: AKH60N Features: ●Lightweight and compact type with a total length of only 360 mm. ●By using the auxiliary lever, the terminal can be easily held with one hand. ●The head can rotate 360°. Applications: ●For bare crimp terminals for copper wire, bare crimp sleeves for copper wire (P, B) Specifications: ●Crimping range: 14, 22, 38, 60 ●Crimping range (mm2): 14, 22, 38, 60 ●Power (kN): 39.2 ●Total length (mm): 360 ●Size: Total length 360 mm, weight 2 kg ●JIS C9711 compliant ●For bare terminals and sleeves ●For bare terminals (R type) and sleeves (B and P type) Material/Finish: ●Steel Set contents/Accessories: ●Standard die ●Special case
