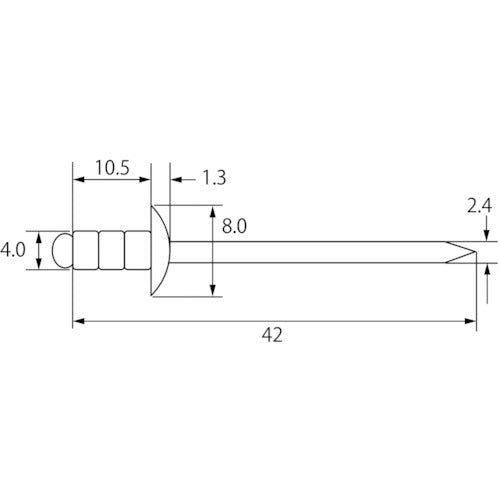

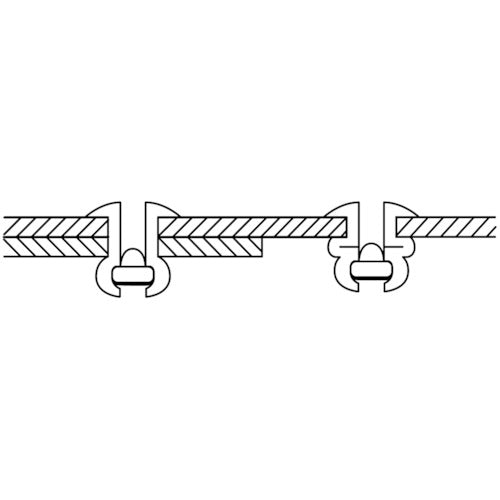

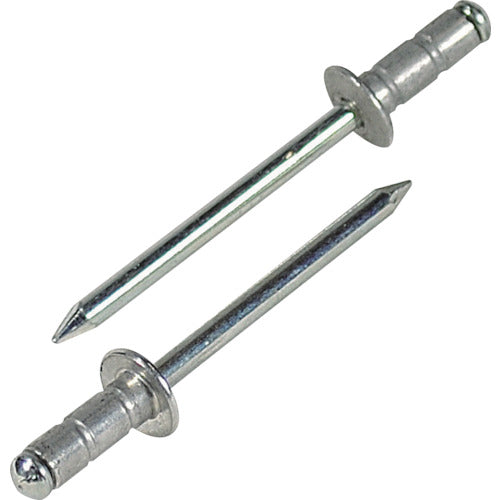

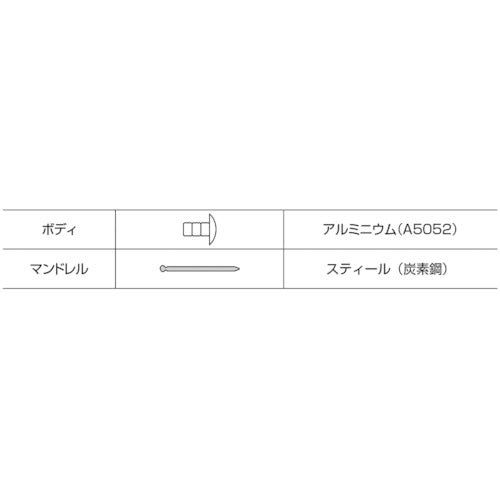

Catalog number: AP54 Features: ● AP rivets have a wide range of suitable crimping plate thicknesses, so one type can be used to crimp a wide range of plates. ● Excellent airtightness, and can also be used with soft boards. Applications: ● Fastening metal to metal, fastening plastic to plastic, and fastening dissimilar base materials (metal to plastic, etc.). ● Automotive sheet metal, electrical sheet metal, etc. Specifications: ● Crimping plate thickness (mm): 1.2-6.4 ● Rivet length (mm): 10.5 ● Flange diameter (mm): 8.0 ● Rivet diameter (mm): 4.0 ● Pilot hole diameter (mm): 4.2-4.3 ● Shear strength (N): 1150 ● Tensile strength (N): 1640 ● Boxed Material/Finish: ● Rivet body (flange): Aluminum (A5052) ● Mandrel (shaft): Steel (carbon steel) Caution: ● Please observe our specified dimensions for the suitable crimping plate thickness and pilot hole diameter, and take into consideration the safety factor when installing. ●Please read the instruction manual for the riveter you are going to use carefully before starting work. ●The dimensions and weight are nominal values and may vary slightly.
