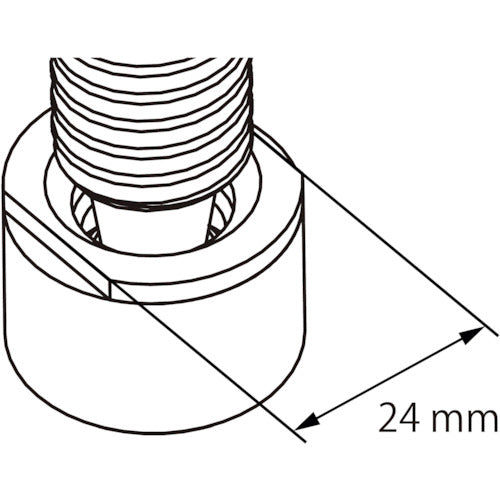

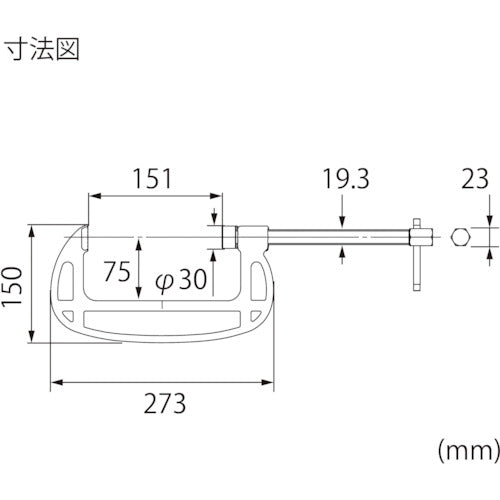

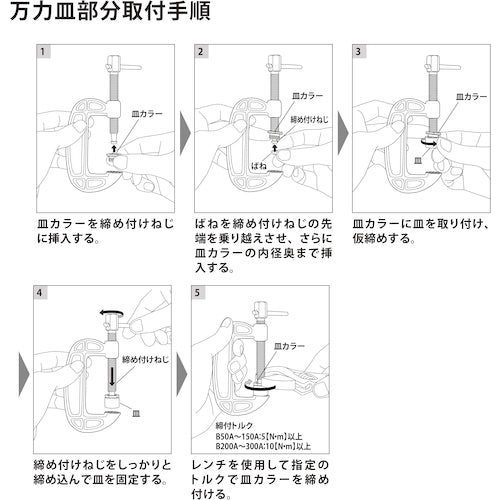

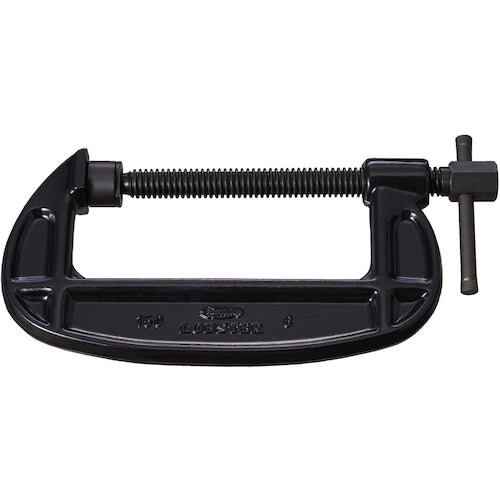

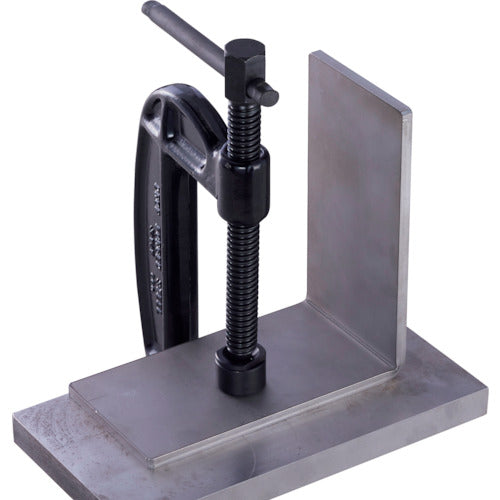

Catalogue number: B150A Features: * The swivel angle of the dish is 15° and can be replaced. * The shaft head is hexagonal and can be tightened with a wrench. * If the dish comes off, it can be reinstalled without special tools. * Precision forging provides sufficient forging strength for long-term use. * Thorough heat treatment fully demonstrates the toughness that is a characteristic of special steel. * High-precision square screws reduce backlash and allow for smooth opening and closing. Applications: * Fixing and holding workpieces during welding and drilling operations. Specifications: ●Maximum opening (mm): 151 ●Jaw depth (mm): 75 ●Male hexagonal side (mm): 23 ●Countersunk angle (°): 15 ●Length (mm): 273 ●Type: Bahco type ●Guaranteed strength (kN): 32.7 ●Main body height (mm): 150 ●Countersunk diameter (mm): φ30 ●Thread thickness (mm): 19.3 ●Hexagonal section two-sided width (mm): 23 ●Countersunk collar two-sided width (mm): 24 ●Countersunk can be replaced Material/Finish: ●Special steel (Main body: Forged) Caution: ●Do not use as a lifting device. ●Do not connect to scaffolding, etc., or attach to objects to use as a scaffolding. ●Tighten securely. ●Do not apply impact by hitting with a hammer, etc. ●Do not use by extending pipes, etc.
