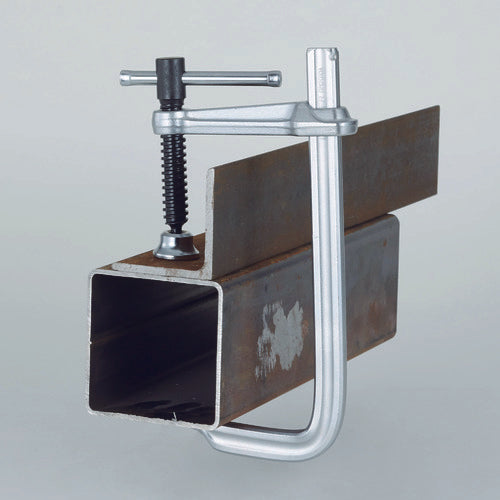

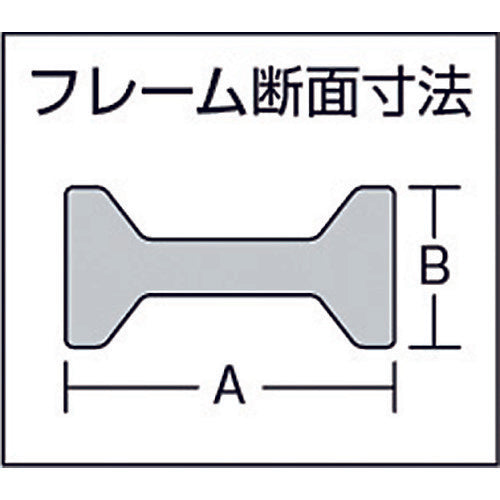

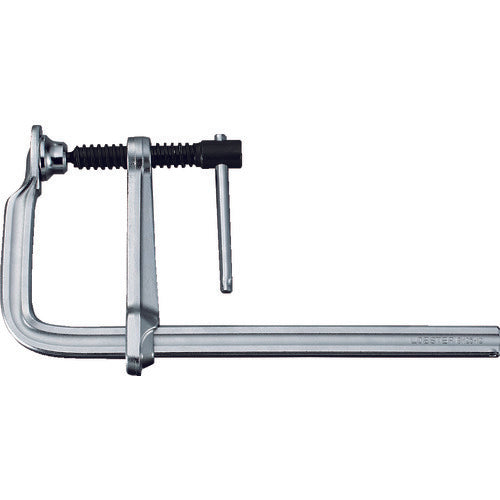

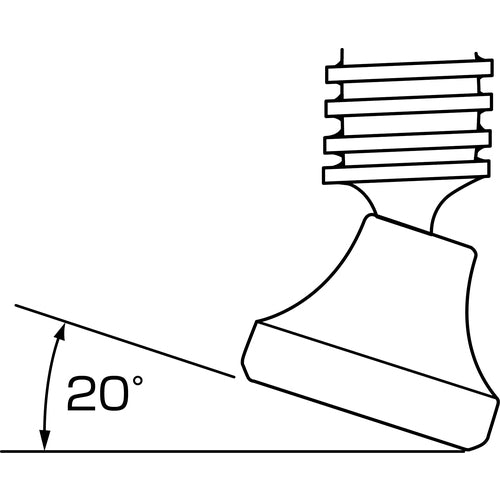

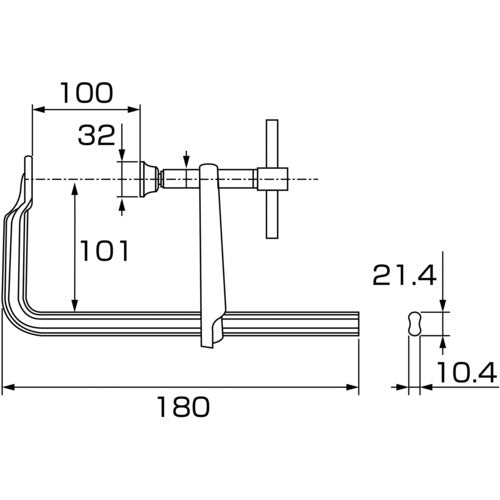

Catalog number: BM1010A Features: ●Standard type of sliding vice for manual finishing and light work. ●Jaws slide on the rails for speedy tightening. ●The plate part has a 20° swivel angle. ●The main body is specially heat treated to achieve moderate elasticity and high durability! Applications: ●Tightening, holding and fixing objects. ●Welding work. ●Processing and assembly of workpieces. Specifications: ●Total length (mm): 180 ●Maximum opening (mm): 100 ●Depth (mm): 101 ●Frame dimension (mm) A: 21.4 ●Frame dimension (mm) B: 10.4 ●Maximum clamping pressure (kg): 6.5 ●Product name: EBI vice, standard type with bar handle, 100mm x 100mm ●Product name: EBI vice, standard type with bar handle, 100mm x 100mm ●Maximum clamping force: 6.5kN ●Rail cross section: 10.4mm x 21.4mm Material/Finish: ●Special steel Caution: ●Do not use as a lifting or pulling tool. ●Do not use to connect scaffolding or as a substitute for scaffolding. ●Do not fix in an unstable manner, such as by protruding from the base material.
