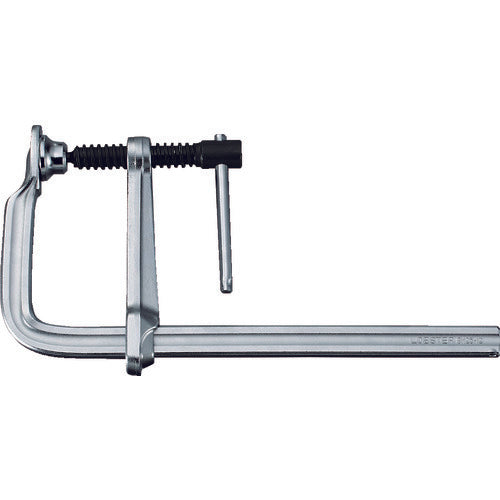

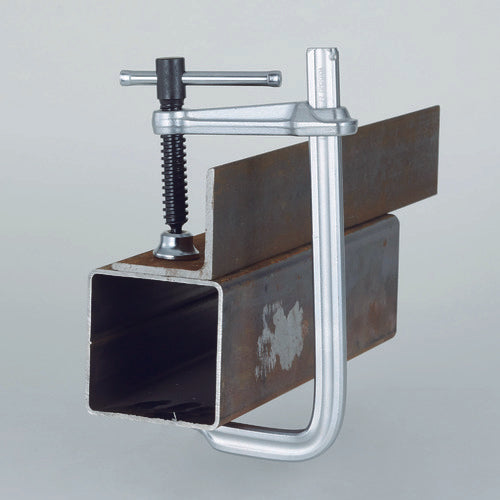

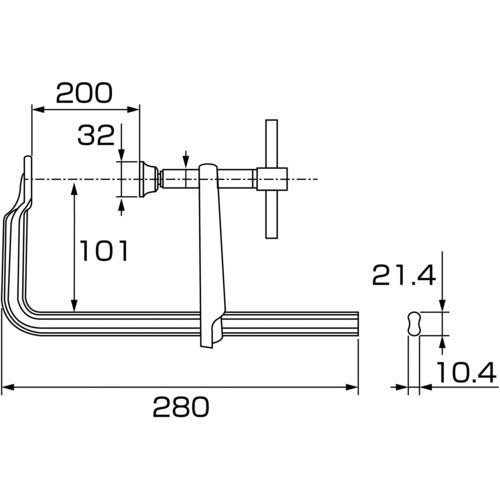

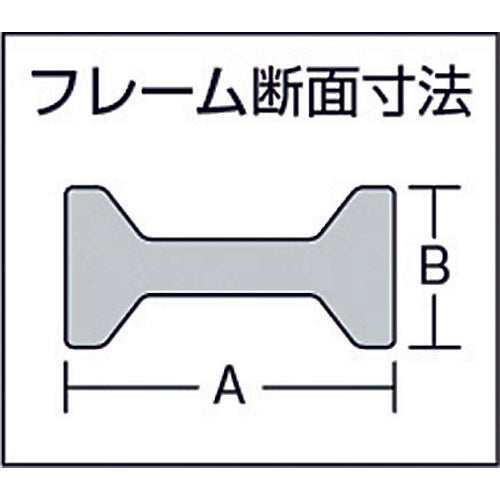

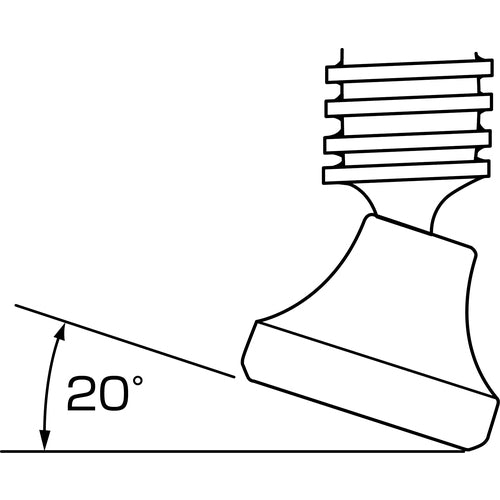

Catalog number: BM2010A Features: ●Standard type of sliding vice for manual finishing and light work. ●Jaws slide on the rail for speedy tightening. ●Plate part has a 20° swivel angle. ●Special heat treatment of the main body gives it moderate elasticity and high durability! Applications: ●Tightening, holding and fixing objects. ●Welding work. ●Processing and assembly of workpieces. Specifications: ● Total length (mm): 280 ● Maximum opening (mm): 200 ● Depth (mm): 101 ● Frame dimension (mm) A: 21.4 ● Frame dimension (mm) B: 10.4 ● Maximum clamping pressure (kg): 6.5 ● Product name: EBI vice, standard type with bar handle, 200mm x 100mm ● Product name: EBI vice, standard type with bar handle, 200mm x 100mm ● Maximum clamping force: 6.5kN ● Rail cross section: 10.4mm x 21.4mm Material/Finish: ● Special steel Caution: ● Do not use as a lifting or pulling tool. ● Do not use to connect scaffolding or as a substitute for scaffolding. ● Do not fix in an unstable manner, such as by protruding from the base material.
