ELECOM CAT6A compatible compact RJ45 extension connector LD-RJ45JJ6AY2 1 piece

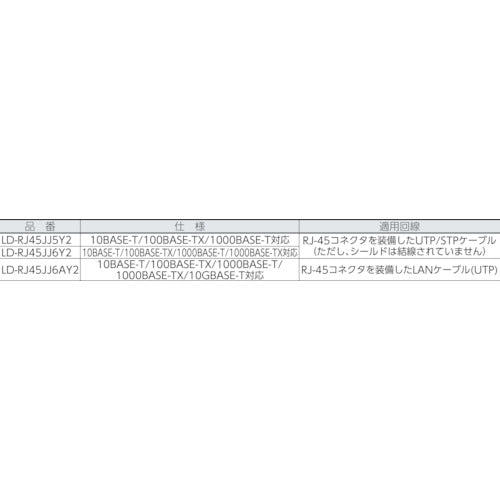

Catalog number: LD-RJ45JJ6AY2 Features: ●Loss during relaying is low, and deterioration of data transmission due to extension of LAN cable can be suppressed. ●Very compact, achieving about half the volume of conventional products. ●For extending LAN cables with 10BASE-T/100BASE-TX/1000BASE-T specifications. ●Supports enhanced category 5. Uses: ●As a cover to attach to the connector part of the cable to protect it. ●As an extension connector for LAN cables with RJ-45 modular jacks. Specifications: ●Color: White ●Type: Cat6A ●Compatible lines: UTP/STP cable equipped with RJ-45 connector (however, the shield is not wired) ●Width (mm): 14.6 ●Height (mm): 16.2 ●Depth (mm): 30.9 ●Specifications: Supports 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-T/1000GBASE-TX ●Wiremap: Straight
