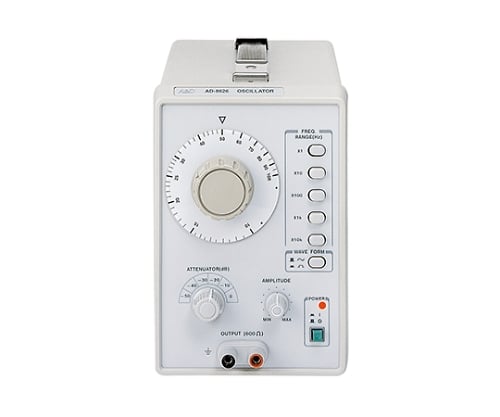

Oscillator 10Hz to 1MHz AD-8626 1 piece

[Applications] For school experiments, checking electronic circuits, and hobby-related 【Features】 1MHz low distortion oscillator Wide frequency range from 10Hz to 1MHz (5 ranges) Positive arc with distortion of 0.02% or less (500Hz to 20kHz) Signal output section with built-in attenuator in 10 dB steps (0 to -50 dB) Output frequency range: 10 Hz to 1 MHz (5 ranges) Signal output section Output waveform: Square wave, sine wave Signal output section Output amplitude: Sine wave 5Vrms or more (at 600Ω load), square wave 10Vpp or more (at no load) Signal output section Output frequency accuracy: Dial accuracy ±(3% + 1Hz) (accuracy at dial 10 and 100 positions) Signal output section Output impedance: Approx. 600 Ω Signal output section Attenuator: 0, -10, -20, -30, -40, -50 (dB), (6 steps, accuracy ±1dB, 600Ω load) Sine wave distortion rate: 0.02% or less (500Hz to 20kHz) Square wave Rise and fall time/symmetry: 200ns or less/±5% (1kHz, maximum output) Input voltage: AC100V±10%, 50Hz/60Hz Accessories: Instruction manual, 1 power cable, 1 output cable (Banana-Waniro)
