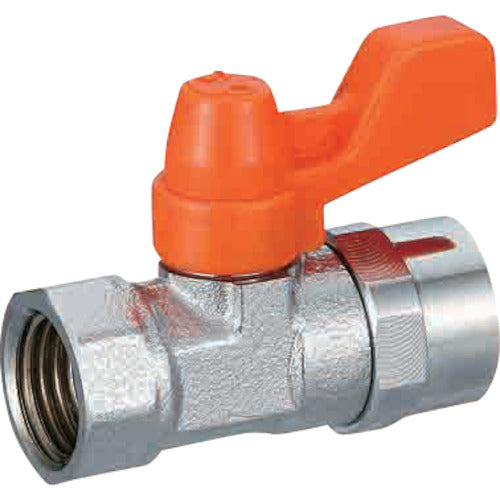

Onda Seisakusho Eball ME1 type Rc1/4 x Rc1/4 ME1-08M 1 piece

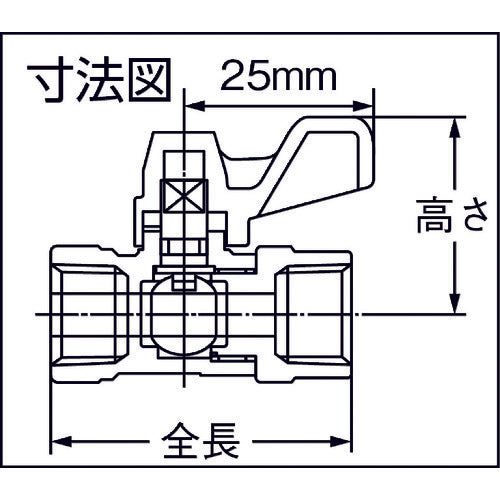

Catalog number: ME1-08M Features: ●Compared to free ball and miniature ball valves, the face-to-face dimension is shorter and the number of parts is fewer, resulting in a simple design. ●The handle is removable with one touch, so it does not get in the way of installation. Applications: ●For hot and cold water, oil, and air. Specifications: ● Connection diameter D1: Rc1/4 ● Height (mm): 26 ● Operating temperature range (℃): -20 to 80 ● Connection diameter D: Rc1/4 ● Fluid used: cold/hot water, oil, air ● Maximum allowable pressure (MPa): 1.0 ● Overall length (mm): 39.5 ● Suitable fluids: cold/hot water, oil, air ● Inner diameter (mm): 5.5 ● Handle length D (mm): 25 ● Nominal diameter A: 8 ● Nominal diameter B: Rc1/4 x Rc1/4 ● Nominal diameter A: 8 ● Nominal diameter B: 1/4 ● Suitable fluids: cold/hot water, oil, air ● Allowable pressure: 1.0MPa (-20 to 80℃) ● Detachable handle ● Rc screw x Rc screw Material/Finish: ● Brass (C3771BE)
