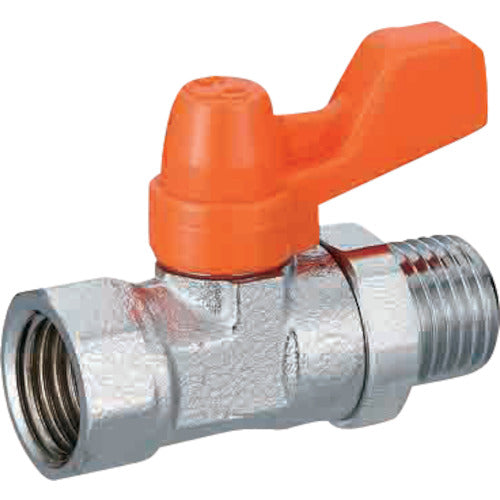

Onda Manufacturing Co., Ltd. E-ball ME2 type Rc3/8 x R3/8 ME2-10M 1 piece

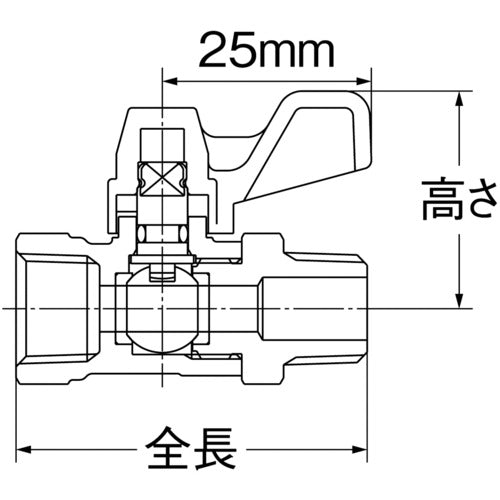

Catalog number: ME2-10M Features: ●Compared to free ball and miniature ball valves, the face-to-face dimension is shorter and the number of parts is fewer, making it a simple design. ●The handle is removable with one touch, so it does not get in the way of installation. Applications: ●For cold and hot water, oil, and air. Specifications: ●Connection diameter D1: Rc3/8 ●Connection diameter D2: R3/8 ●Height (mm): 27.5 ●Operating temperature range (℃): -20 to 80 ●Operating fluid: cold and hot water, oil, air ●Total length (mm): 45.5 ●Inner diameter (mm): 8 ●Handle length D (mm): 25 ●Nominal diameter A: 10 ●Nominal diameter B: 3/8 ●Compatible fluid: cold and hot water, oil, air ●Allowable pressure: 1.0MPa (-20 to 80℃) ●Detachable handle ●Rc thread x R thread ●Maximum operating pressure: 1.0MPa Material/Finish: ●Brass (C3771BE)
