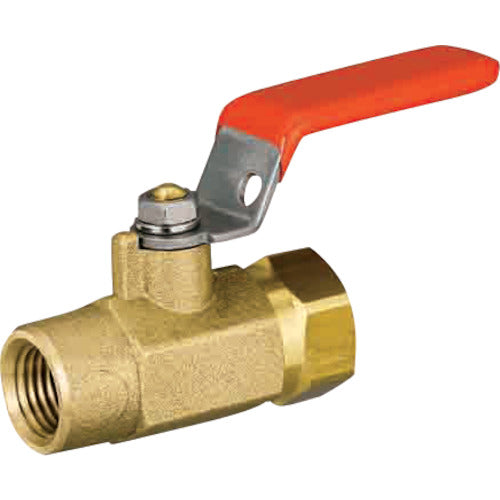

Onda Manufacturing Co., Ltd. Miniature ball valve MR3 type Rc1/4 x Rc1/4 MR3-08 1 piece

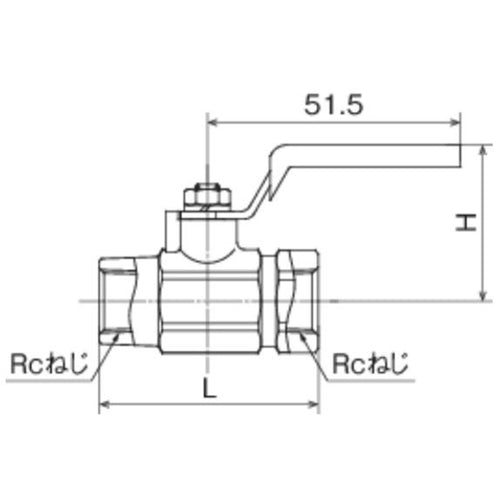

Catalog number: MR3-08 Features: ● Small lever handle type ball valve. Applications: ● For cold and hot water, oil, and air. Specifications: ● Connection diameter D1: Rc1/4 ● Connection diameter D2: Rc1/4 ● Height (mm): 32 ● Operating temperature range (℃): -20 to 80 ● Fluids used: cold and hot water, oil, and air ● Overall length (mm): 44.5 ● Inner diameter (mm): 7.5 ● Handle length D (mm): 51.5 ● Nominal diameter A: 8 ● Nominal diameter B: 1/4 ● Compatible fluids: cold and hot water, oil, and air ● Allowable pressure: 1.0MPa (-20 to 80℃) ● Rc thread x Rc thread ● Maximum operating pressure: 1.0MPa Material/Finish: ● Brass (C3771BE)
