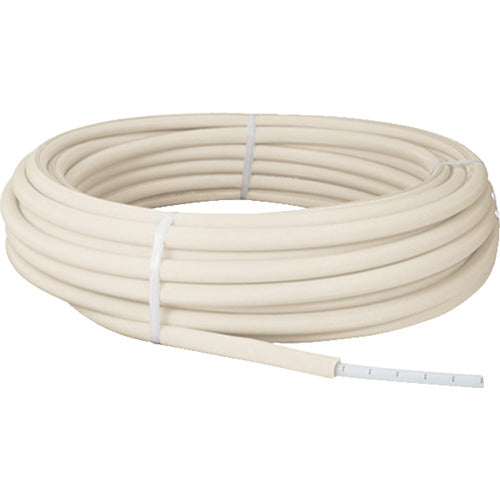

Onda Manufacturing Co., Ltd. Cross-linked polyethylene pipe, coated Easy Capri Pipe W, white, 5mm coating, 16A, 30m, PEX16C-PW5-Y30, 1 roll

Catalog number: PEX16C-PW5-Y30 Features: ●Covered with cross-linked polyethylene pipe. ●Loose curl improves ease of installation. ●Convenient for laying pipes and passing pipes through narrow spaces. Applications: ●For water supply, hot water supply, heating, and snow melting piping. Specifications: Nominal diameter: 16 (PEX) Maximum operating pressure (MPa): 1.50 (0℃ to 20℃), 1.25 (21℃ to 40℃), 0.95 (41℃ to 60℃), 0.85 (61℃ to 70℃), 0.75 (71℃ to 80℃), 0.70 (81℃ to 90℃), 0.65 (91℃ to 95℃) Operating temperature range (℃): -20 to 95 Total length (mm): 30000 Product name: Cross-linked polyethylene pipe Coated Easy Capri Pipe W White 5mm coating 16A 30m Color: White Coating thickness (mm): 5 Material/Finish: Pipe: Cross-linked polyethylene Caution: Use a coating cutter to cut off the coating material. Do not use commercially available cutter knives. Scratching the resin pipe may cause water leakage.
