Onda Manufacturing SVG2 type (gate valve) Rc3/4 SVG2-20 1 piece

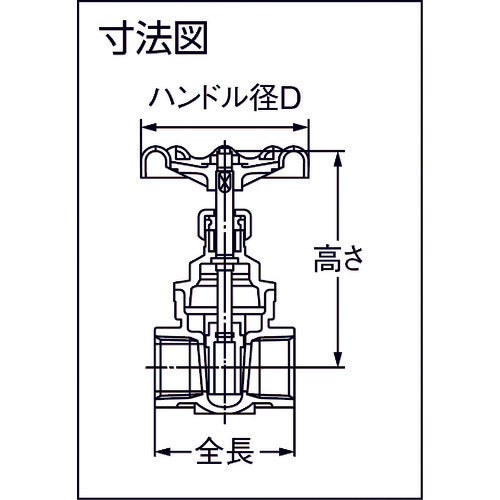

Catalog number: SVG2-20 Features: ●The material is austenitic stainless steel, which has excellent corrosion resistance. ●Since it is a lost wax casting, it has stable quality. Applications: ●For cold and hot water and oil. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: Rc3/4 ●Total length (mm): 58 ●Height (mm): 91 ●Handle diameter D (mm): 70 ●Maximum allowable pressure (MPa): 1.4 (still water below 120°C), 1.0 (water and oil below 180°C) ●Operating temperature range (°C): below 180°C ●Compatible fluids: cold and hot water and oil ●Minimum inner diameter (mm): 20 ●Allowable pressure: 1.4MPa (still water below 120°C), 1.0MPa (water and oil below 180°C) Material/Finish: ●Stainless steel (SCS13A: SUS304 series) ●Lost wax casting Note: ●The gland packing may require retightening due to stress relaxation during transportation, storage and use. ●If the gland packing begins to leak during use, be sure to release the pressure and then tighten the nut.
