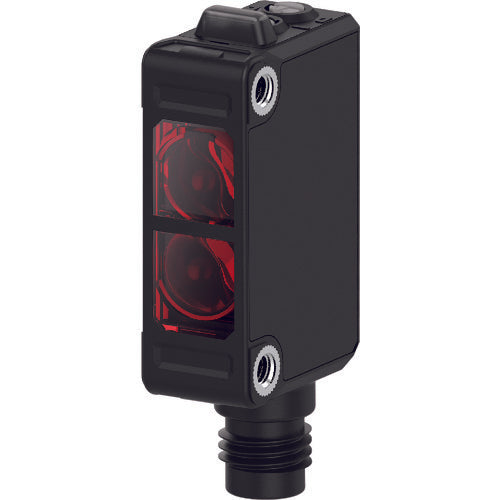

Autonics [Sold Out Item] Small long distance photoelectric sensor BJX100-DDT-C 1 unit

Catalogue number: BJX100-DDT-C Features: ● Equipped with a mutual interference prevention function, it can be installed close together. ● Light/dark-on operation mode can be selected by a switch. Applications: ● For detecting the amount of printing paper loaded. Specifications: ● Detection method: Diffuse reflection type ● Detection distance (m): 0.1 ● Output type: Transistor output ● Length (mm): 20 ● Width (mm): 11 ● Height (mm): 32 ● Cord length (m): 2 ● Protection class: IP65 (IEC standard) ● Detection object: Opaque, semi-transparent ● Power supply voltage: DC10-30V ● Current consumption: 30mA or less ● Protection class: IP65 (IEC standard) ● Cord length: 2m ● Indicator light: Yellow LED operation display ● Operation mode: Light-on/dark-on switching type ● Volume-type sensitivity adjustment ● CE ● Connector type Material/Finish: ● Case, LED cap: PC Detection part: PMMA
