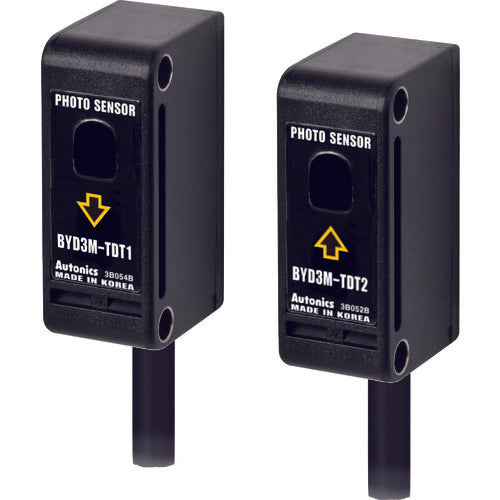

Autonics Small Photoelectric Sensor (Set of 2) BYD3M-TDT 1 S

Catalog number: BYD3M-TDT Features: ● Compact and can be installed in a narrow space. ● Built-in overcurrent protection circuit and power reverse connection protection circuit. Applications: ● For detecting products on product movement lines. Specifications: ● Detection method: Through-beam type ● Detection distance (m): 3 ● Output format: NPN open collector output ● Length (mm): 18 ● Width (mm): 12.4 ● Height (mm): 32 ● Cord length (m): 2 ● Protection rating: IP64 (IEC standard) ● Detection object: Opaque (Φ6mm or more) ● Power supply voltage (V): DC12-24V ● Current consumption: 30mA or less ● Indicator light: Red LED operation indication ● Operation mode: Dark on ● Fixed sensitivity adjustment ● CE Material/Finish: ● Case: ABS Detection surface: Acrylic Bracket: SPCC Bolt: SCM Nut: SCM
