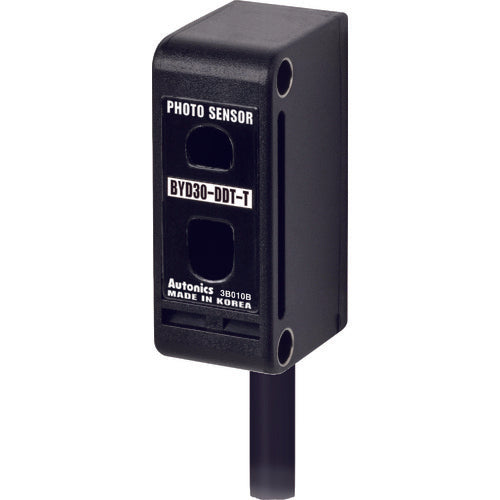

Autonics Small Photoelectric Sensor BYD30-DDT-T 1 piece

Catalog number: BYD30-DDT-T Features: ● Compact and can be installed in a narrow space. ● Equipped with an overcurrent protection circuit and a power reverse connection protection circuit. Applications: ● For product detection on product movement lines. Specifications: ● Detection method: Limited distance reflective type ● Detection distance (m): 0.03 ● Output format: NPN open collector output ● Length (mm): 18 ● Width (mm): 12.4 ● Height (mm): 32 ● Cord length (m): 2 ● Protection class: IP64 (IEC standard) ● Detection object: Opaque, translucent ● Power supply voltage: DC12-24V ● Current consumption: 35mA or less ● Protection class: IP64 (IEC standard) ● Cord length: 2m ● Indicator light: Red LED operation indication ● Operation mode: Light on fixed ● Fixed sensitivity adjustment type ● CE ● With off-delay timer (delay time: 0.1 to 2 seconds or less) Material / Finish: ● Case: ABS Detection surface: Acrylic Bracket: SPCC Bolt: SCM Nut: SCM
