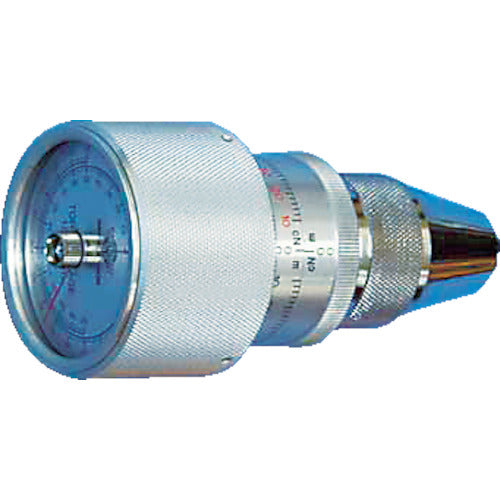

Kanon Torque Gauge MN30SGK MN30SGK 1 piece

Catalog number: MN30SGK Features: ●The tip is a three-way chuck (made of metal), so the object to be measured can be firmly fixed. ●Measurements can be made in either the left or right direction. Applications: ●Ideal for measuring and tightening minute torques in ultra-precision machinery and electronic devices. Specifications: ●Measurement range (cN・m): 4 to 30mN･m ●Minimum scale (cN・m): 0.5mN･m ●Total length (mm): 106 ●Outer diameter (mm): 43 ●Chuck range (mm): 1 to 6.5 ●Measurement range (left/right) (mN・m): 4 to 30 ●Chuckable diameter (φmm): 1 to 6.5 ●Minimum scale (mN・m): 0.5 ●Torque accuracy: ±6% Material/Finish: ●Aluminum (A5056)
