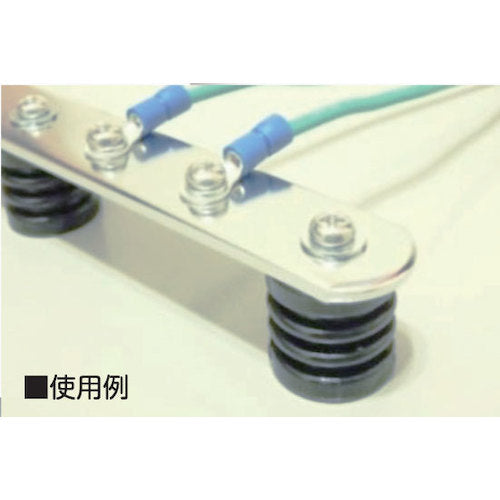

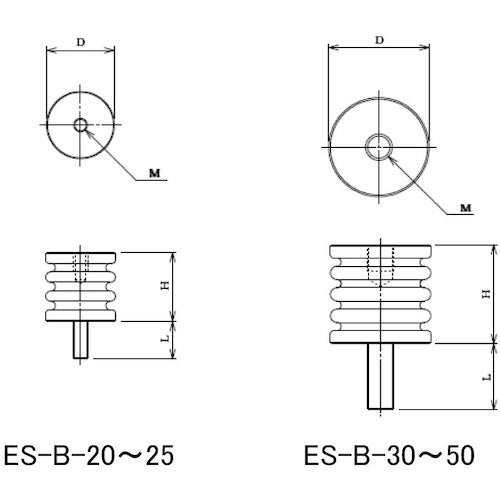

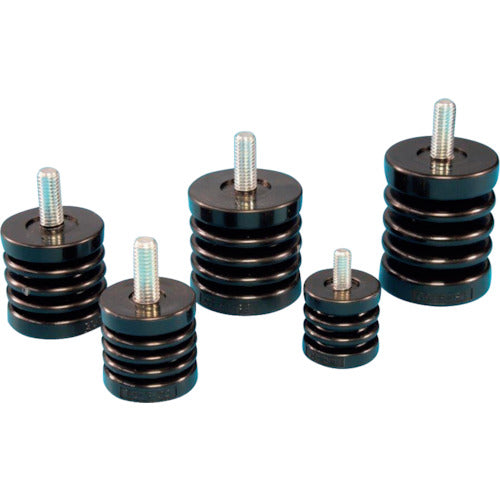

Catalogue number: ESM-B-20-4 Features: ●Strength and durability are improved compared to conventional products. ●Excellent insulation. Applications: ●As an insulation stand for mounting equipment such as switchboards, distribution boards, and control panels. ●For busbar connections and insulation support. Specifications: ●Screw diameter: M4 ●Height (mm): 20 ●Outer diameter (mm): 15 ●Nominal diameter: M4 ●Effective depth (mm): 6 ●Bolt length (mm): 13 ●Low voltage insulation support Material/Finish: ●Polypropylene (PP) ●Insert nut, bolt: Iron (trivalent chromate plating finish)
