Kubota Chemicals TS Metal Faucet Elbow TS-MWL 16 TSMWL16 1 pc

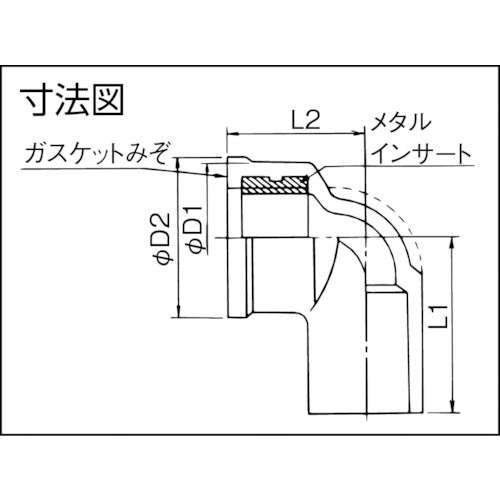

Catalog number: TSMWL16 Features: ●Couplings with excellent corrosion and chemical resistance. Applications: ●Water supply pipes for apartment buildings, detached houses, stores, facilities, etc. Specifications: ●PVC pipe nominal diameter: 16 ●Dimensions (mm) D: 29 ●Maximum operating pressure (MPa): 1.0MPa ●Operating temperature range (℃): 5℃ to 35℃ ●Thread: Rp1/2 ●Dimensions (mm) L: 43 ●Dimensions (mm) D2: 34 ●Dimensions (mm) L1: 43 ●Dimensions (mm) D1: 30 ●Dimensions (mm) L2: 32 ●Operating temperature range: 5 to 35℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard ●Thread material: Metal Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in extremely hot places. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater.
