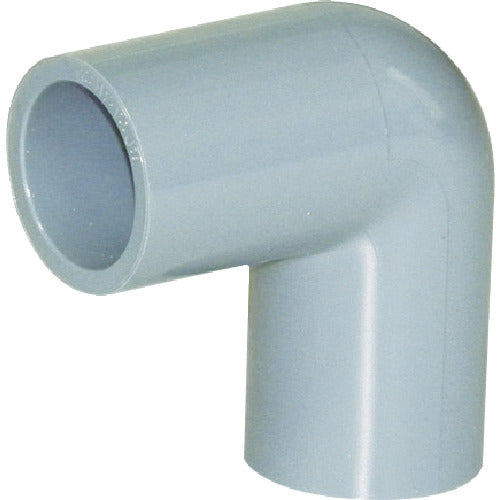

Kubota Chemix TS fitting elbow TS-L 30 TSL30 1 piece

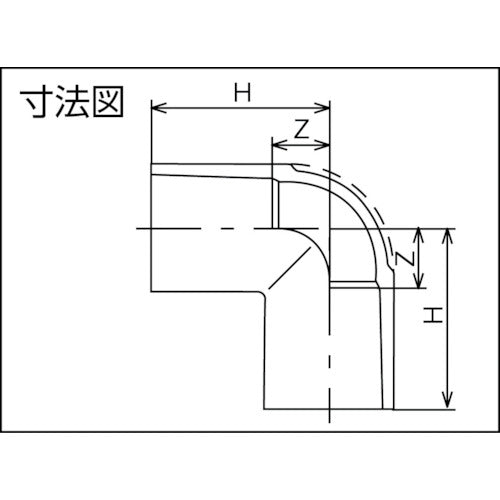

Catalog number: TSL30 Features: ●Coupling with excellent corrosion and chemical resistance. Applications: ●Water supply pipes for apartment buildings, detached houses, stores, facilities, etc. Specifications: ●PVC pipe nominal diameter: 30 ●Dimensions (mm) D: 46 ●Dimensions (mm) H: 65 ●Dimensions (mm) Z: 21 ●Operating temperature range: 5 to 35°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in extremely hot places. Store indoors, or if you have to store them outdoors, cover them with a sheet or similar to avoid direct sunlight and rainwater. ●TSL28 and TSL35 are non-JIS standard products.
