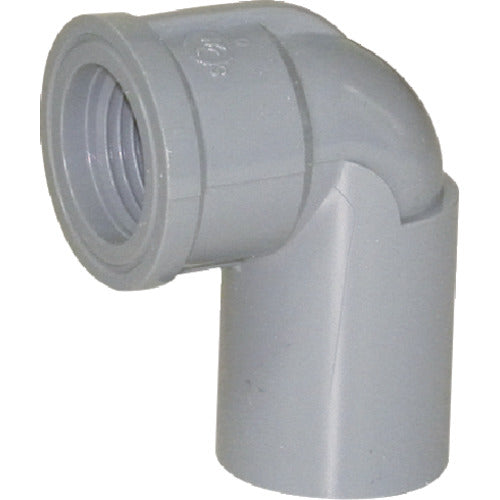

Kubota Chemix TS fitting faucet elbow TS-WL13 TSWL13 1 piece

Catalog number: TSWL13 Features: ●Couplings with excellent corrosion and chemical resistance. Applications: ●Water supply pipe fittings for apartment buildings, detached houses, stores, and facilities. Especially for sites where adhesive construction management is important. Specifications: ●PVC pipe nominal diameter: 13 ●Maximum operating pressure (MPa): 1.0MPa ●Operating temperature range (℃): 5℃ to 35℃ ●Thread: Rp1/2 ●Dimensions (mm) D2: 34 ●Dimensions (mm) D1: 28 ●Dimensions (mm) L2: 29 ●Dimensions (mm) L1: 38 ●Design water pressure: 1.0MPa ●JIS K6743 standard ●Thread material: Resin Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●Avoid storing various products in places under the blazing sun or in extremely hot places. Store indoors, or if you have to store them outdoors, cover them with a sheet or something to avoid direct sunlight and rainwater. *Please use metal fittings in areas subject to bending or vibration, or where repeated removal is required. *Keep away from bonfires, torch lamps, construction lighting lamps, etc. The PVC pipe may soften, deform, or carbonize.
