Classic Biological Microscope 40-1000x BM-322 1 unit
Classic Biological Microscope 40-1000x BM-322 1 unit
Regular price
¥87,670
Regular price
Sale price
¥87,670
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Eyepiece: WF10x (field number 18)
Objective lens: Achromat 4x, 10x, S40x, S100x (oil)
Tube type: Binocular head, tilt angle 30°
Focus adjustment: Single-axis coarse/fine adjustment (with static and tension adjustment), stroke/2μm (front and back)
Stage: 124 x 140 mm (forward/backward movement 50 mm x left/right movement 75 mm)
Interpupillary range: 55-75mm
Lighting: 20W halogen light (adjustable light intensity)
Condenser: Abbe type NA1.25 with iris diaphragm and filter holder
Power supply: AC100V 50/60Hz 3P plug (cord length: approx. 165cm)
Size: Approx. 187 x 231 x 385mm
Weight: Approx. 5.3kg
Total magnification: 40x to 1000x

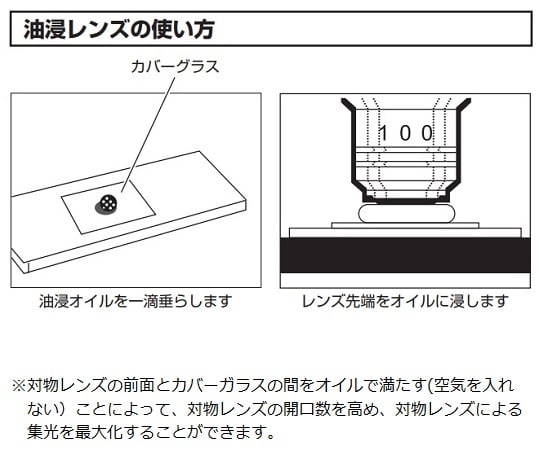

*Oil immersion oil is required when using S100.
Accessories: Filter (blue), immersion oil (5mL), dust cover, replacement halogen lamp
