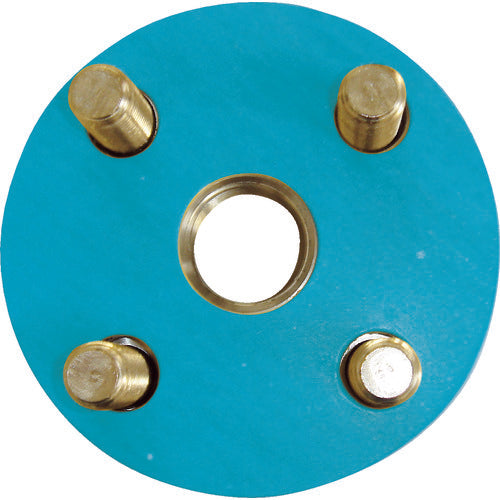

Klinger Non-Asbestos Joint Sheet Flange Outer Packing 10K A100 HNJ-100A-10K 1 sheet

Catalog number: HNJ-100A-10K Features: ●The surface is treated to prevent adhesion and corrosion. ●This joint sheet does not contain asbestos. Applications: ●Packing for JIS flanges. ●Joint sheet for flanges. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Inner diameter (mm): 115 ●Outer diameter (mm): 210 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 175 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 19 ●Nominal diameter: 100A ●Bolt hole center diameter: 175mm ●Number of holes x hole diameter: 8 holes x 19mm ●Inner diameter: 115mm ●Outer diameter: 210mm ●Heat resistance temperature (℃): -150 to 250℃ (saturated steam 200℃) ●Operating temperature range: -150 to 250℃ Material/Finish: ●Sheet made of glass fiber, synthetic fiber, and filler with NBR and rolled.
