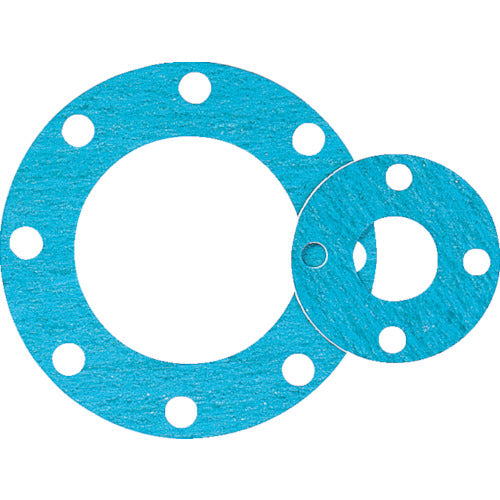

Klinger Non-asbestos joint sheet flange outer packing 5K A32 HNJ-32A-5K 1 sheet

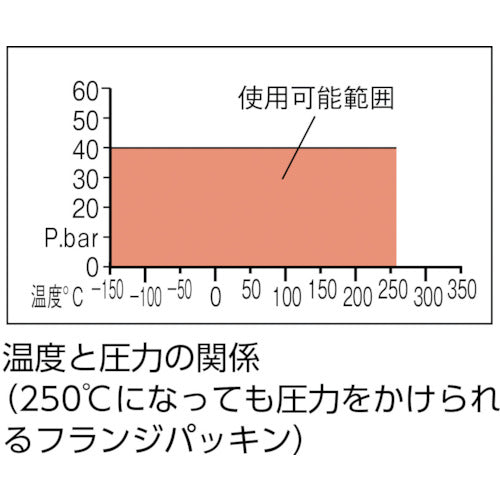

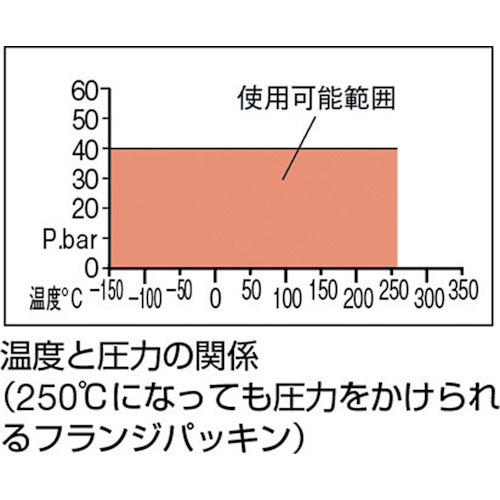

Catalog number: HNJ-32A-5K Features: ●The surface is treated to prevent adhesion and corrosion. ●This joint sheet does not contain asbestos. Applications: ●Packing for JIS flanges. ●Joint sheet for flanges. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●Inner diameter (mm): 43 ●Outer diameter (mm): 115 ●Thickness (mm): 3 ●Operating pressure (K): 5 ●Bolt hole center diameter (mm): 90 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Nominal diameter: 32A ●Bolt hole center diameter: 90mm ●Number of holes x hole diameter: 4 holes x 15mm ●Inner diameter: 43mm ●Outer diameter: 115mm ●Heat resistance temperature (℃): -150 to 250℃ (saturated steam 200℃) ●Operating temperature range: -150 to 250℃ Material/Finish: ●Sheet made of glass fiber, synthetic fiber, and filler with NBR and rolled.
