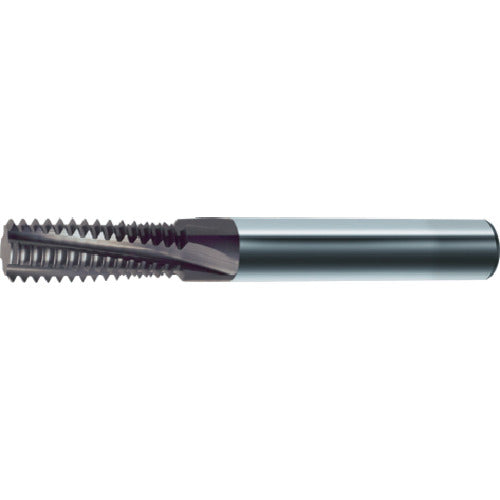

Guhring Thread Cutting Tool for Machine Tools Solid Carbide Thread Milling Cutter M10 x Pitch 1.5mm 4133 10.000 1 piece

Catalogue number: 4133 10.000 Features: ● If the pitch is the same, different diameters can be machined with one tool. ● Right-handed and left-handed threads can be machined with one tool. ● Effective threads can be generated to the bottom of the blind hole. Applications: ● Workpiece: carbon steel, alloy steel, stainless steel, heat-resistant alloys (Hastelloy, Inconel, etc.). Specifications: ● Nominal size: M10 ● Pitch (mm): 1.5 ● Blade diameter (mm): 7.95 ● Blade length (mm): 21.8 ● Total length (mm): 74 ● Number of blades (pieces): 3 ● Shank diameter (mm): 10 ● Surface treatment: Titanium carbonitride (TiCN) ● Thread: For metric thread inner diameter (ISO) Material/Finish: ● Ultra-fine grain carbide
