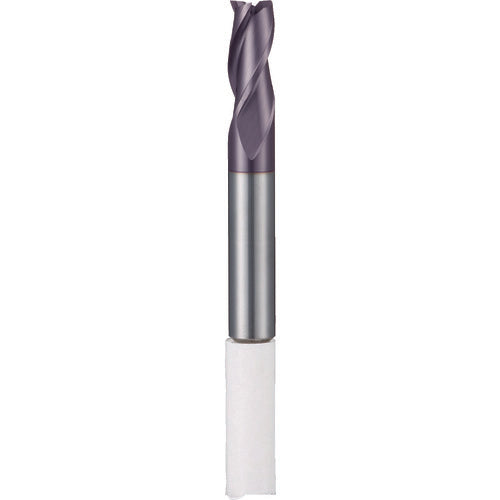

Guhring Carbide Square End Mill ECO End Mill 3-Blade 8mm 19963 8.000 1 Piece

Catalog number: 19963 8.000 Features: ● Pin-type, can be used for a wide range of work materials. Applications: ● Work materials: General structural steel, carbon steel, alloy steel, cast iron, aluminum alloy. Specifications: ● Blade diameter (mm): 8 ● Blade length (mm): 19 ● Neck length (mm): 25.5 ● Shank diameter (mm): 8 ● Number of blades (pieces): 3 ● Total length (mm): 60 ● Surface treatment: A coating ● Twist angle (°): 30 ● Number of blades: 3 ● Twist angle (°): 30 ● Twist angle 30° ● Pin angle ● Center cut: Included ● Blade diameter tolerance: φ2 to φ12 (0, -0.02) φ16 or more (0, -0.03) Material/Finish: ● Carbide alloy
