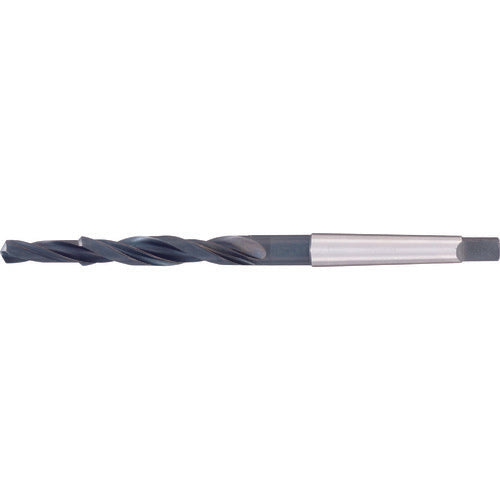

Guhring 90° chamfering sub-land drill, regular, homo treatment, 17.5 mm, 541 17.500, 1 piece

Catalogue number: 541 17.500 Features: ● Chamfering and drilling can be done in one process. Applications: ● For 90° chamfering (for pilot holes). ● For general steel, free-cutting steel, carbon steel, cast iron, and aluminum. Specifications: ● Total length (mm): 228 ● Surface treatment: Homo treatment ● Large diameter (mm): 17.5 ● Small diameter (mm): 14 ● Groove length (mm): 130 ● Step length (mm): 38.5 ● Metric thread: M16 ● Tip angle (°): 118 ● Shank: MT2 ● N/Standard Material/Finish: ● HSS
