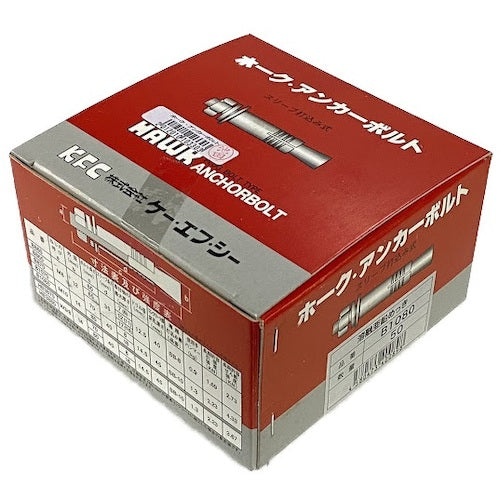

K.F.C. Hawk Anchor Bolt B Type Hot Dip Galvanized B1080 HDZ 50 Pieces

Catalog number: B1080 HDZ Features: ●There is little variation in strength, and it is widely used. ●After pouring, by tightening the included nut sufficiently, the expansion part will expand accordingly, resulting in more stable strength. Applications: ●For concrete. For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc. Specifications: ●Screw size: M10 ●Total length (mm): 80 ●Sleeve length (mm): 40 ●Maximum thickness of mounting object (mm): 18 ●Maximum tensile load (kN): 19.0 ●Embedding depth (mm): 45 ●Outer diameter (mm): 14 ●Screw length (mm): 40 ●Effective embedding depth (mm): 45 ●Pilot hole diameter (mm): 14.5 ●Boxed Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
