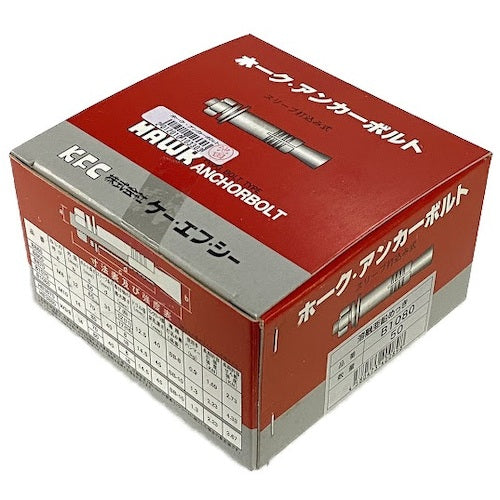

K.F.C. Hawk Anchor Bolt B Type Hot Dip Galvanized B12125 HDZ 100 Pieces

Catalog number: B12125 HDZ Features: ●There is little variation in strength, and it is widely used. ●After pouring, by tightening the included nut sufficiently, the expansion part will expand accordingly, resulting in more stable strength. Applications: ●For concrete. For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc. Specifications: ●Screw size: M12 ●Total length (mm): 125 ●Sleeve length (mm): 60 ●Maximum thickness of mounting object (mm): 37 ●Maximum tensile load (kN): 34.0 ●Embedding depth (mm): 67 ●Outer diameter (mm): 17.3 ●Screw length (mm): 65 ●Effective embedding depth (mm): 67 ●Pilot hole diameter (mm): 18 ●Boxed Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
