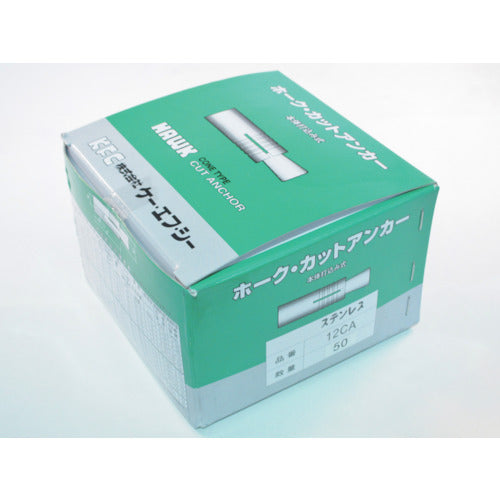

K.F.C. Hawk Cut Anchor CA Type Stainless Steel SUS12CA 50 Pieces

Catalog number: SUS12CA Features: ●A representative product of the "female thread type". Applications: ●For concrete. For installation in architecture, light ceilings, temporary scaffolding, civil engineering, electrical engineering, air conditioning, machinery, signs, etc. ●For installation in architecture, civil engineering, electrical engineering, lighting, machinery, signs, etc. Specifications: ●Screw designation: M12 ●Outer diameter (mm): 17.5 ●Total length (mm): 50 ●Screw length (mm): 20 ●Drill diameter (mm): 18.0 ●Maximum tensile load (kN): 27.0 ●Boxed Material/Finish: ●Stainless steel (equivalent to SUS304) Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/[MM2].
