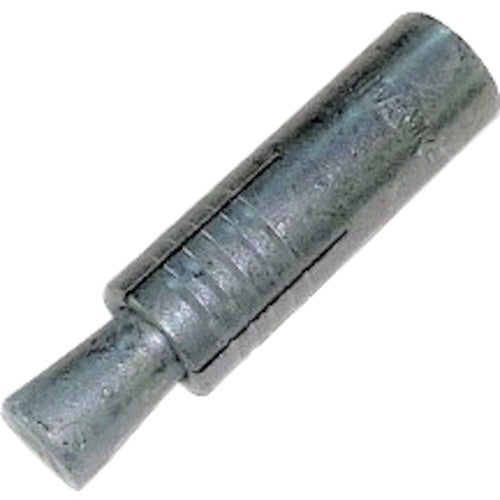

K.F.C. Hawk Cut Anchor CA Type Hot Dip Galvanized 10CA HDZ 100 Pieces

Catalog number: 10CA HDZ Features: ● A representative product of the "female thread type". Applications: ● For concrete. ● For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc. Specifications: ● Thread designation: M10 ● Outer diameter (mm): 14.0 ● Total length (mm): 40 ● Thread length (mm): 14 ● Drill diameter (mm): 14.5 ● Maximum tensile load (kN): 19.0 ● Sleeve length (mm): 40 ● Pilot hole diameter (mm): 14.5 ● Boxed Material/Finish: ● Steel ● Surface treatment: Hot-dip galvanized Note: ● The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
