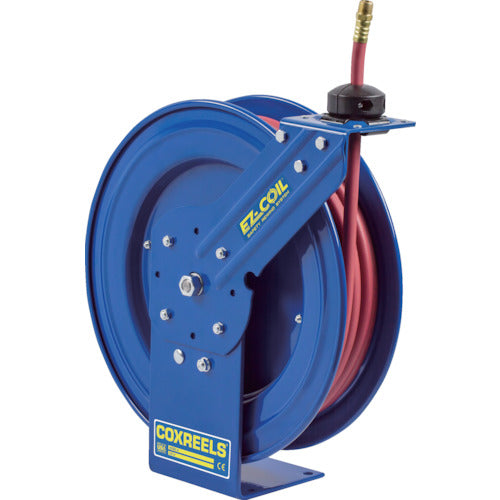

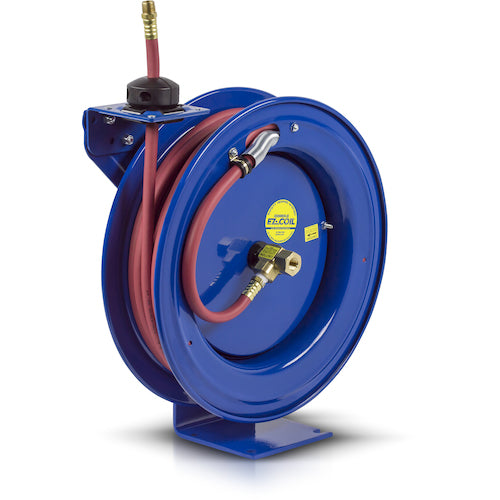

Catalog number: EZ-P-LP-350-BGX Features: ●This model is safer because the patented system allows the reel to be wound 80% slower than a regular reel. ●This is a high-durability steel reel made in the USA. ●The base is 6.35 mm thick and is one-piece molded without welding, making it extremely sturdy. ●The surface of the reel body is finished with a CPC powder coat, which provides high rust and scratch resistance. ●The guide arm can be installed at various angles depending on the site. ●By using a dedicated bracket in combination, you can choose from a variety of installation methods to suit the site. ●The primary side fitting is a swivel type that can be easily removed, allowing for quick hose installation. Applications: ●For supplying large volumes of air. Specifications: ● Hose inner diameter x outer diameter (mm): 9.5 x 15.9 ● Total hose length (m): 15 ● Primary mounting side: BSPT3/8 female thread ● Secondary mounting side: BSPT3/8 male thread ● Maximum operating pressure (MPa): 2.0 ● Width (mm): 171 ● Depth (mm): 435 ● Height (mm): 473 ● Color: Blue ● Hose material: Polyvinyl chloride ● Hose color: Red ● Usable fluids: Air, water ● Base plate dimensions: 152 x 152 mm ● Mounting pitch: 102 x 127 mm ● Seal material: Nitrile rubber Material/Finish: ● Body: CPC powder coated steel ● Hose: Polyvinyl chloride Set contents/Accessories: ● Secondary side hose Note: ● Primary side hose is not included.
