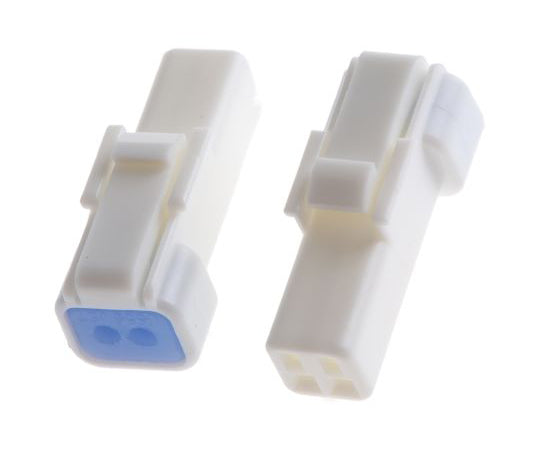

Connector housing, male, 2 poles, 1 row, 2 mm, JWPF series, 1 bag (5 pieces) 02R-JWPF-VSLE-S 1 bag (5 pieces)

UL The tab contact is mounted in a tab housing and the receptacle contact is mounted in a receptacle housing. JST JWPF series connector housing JST's JWPF series is a range of connector housings with a 2.00 mm pitch. Its compact design makes it ideal for small applications. It has a solid rubber seal on the wire side, providing waterproof protection up to IP67 rating. These products are used in a wide range of applications, such as light cluster units and door mirror controls in the automotive industry, appliances such as refrigerators and washing machines, lighting and low current power systems in the railway industry, and factory automation and lighting applications across all industries. Features and Benefits: 2.0mm pitch Wire-to-wire configurations and fittings Waterproof connectors Hermetic facial seal protects against moisture, dust, dirt and scratches Internal housing lock ensures secure mating connection Spring actuated housing-to-terminal locks hold contacts securely Compact design Quantity: 1 bag (5 pieces) Number of contacts: 2 Number of rows: 1 Pitch: 2mm Male/Female: Male Mounting Type: Cable Mount Series: JWPF Compatible products: JWPF series receptacle connector Body Orientation: Straight Length: 6.7mm Width: 5.5mm Depth: 16.5mm Housing material: PBT RoHS Compliance Status: Compliant Code number: 820-1302
